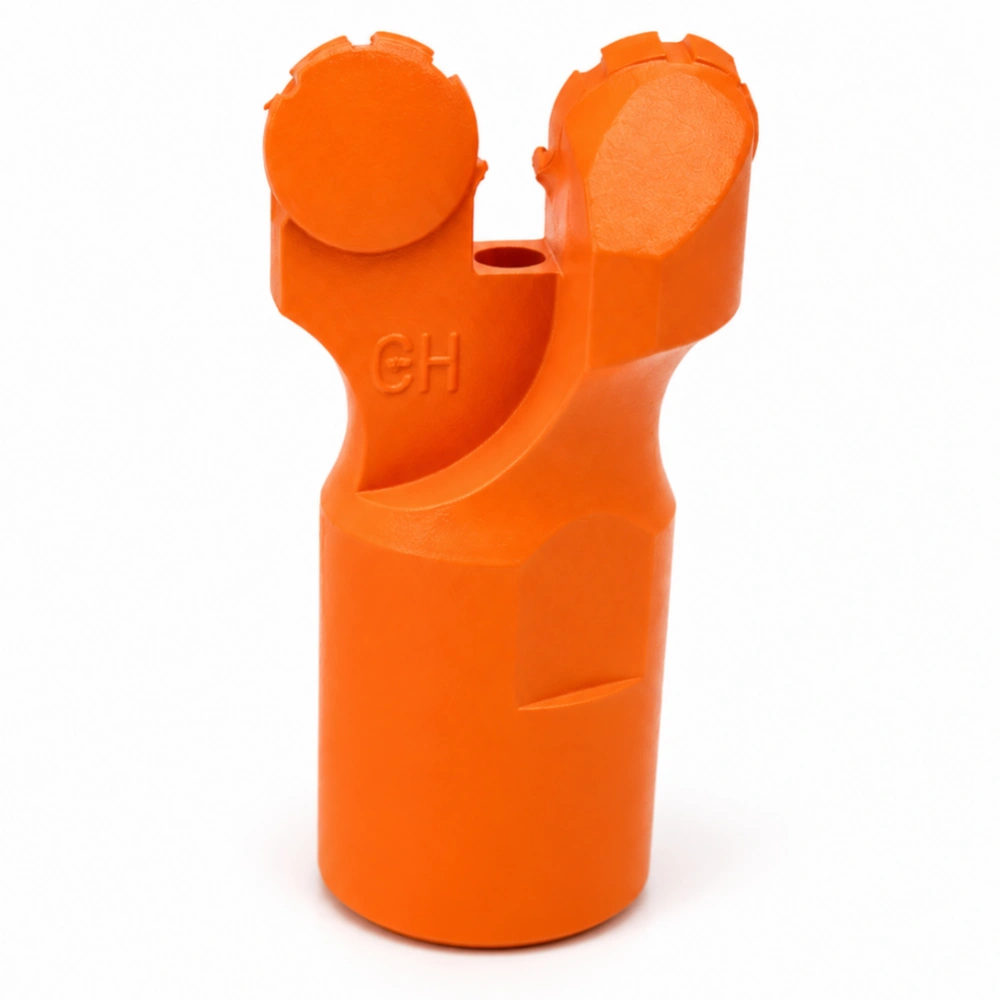

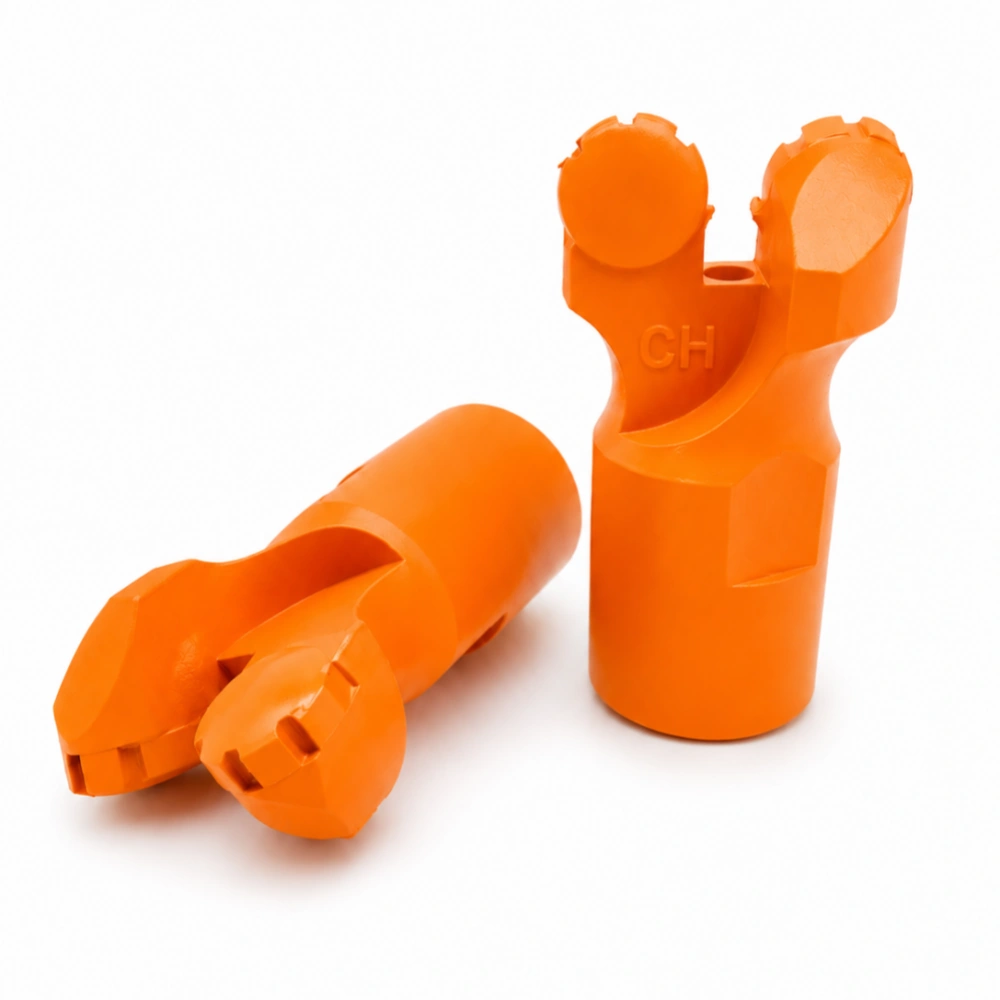

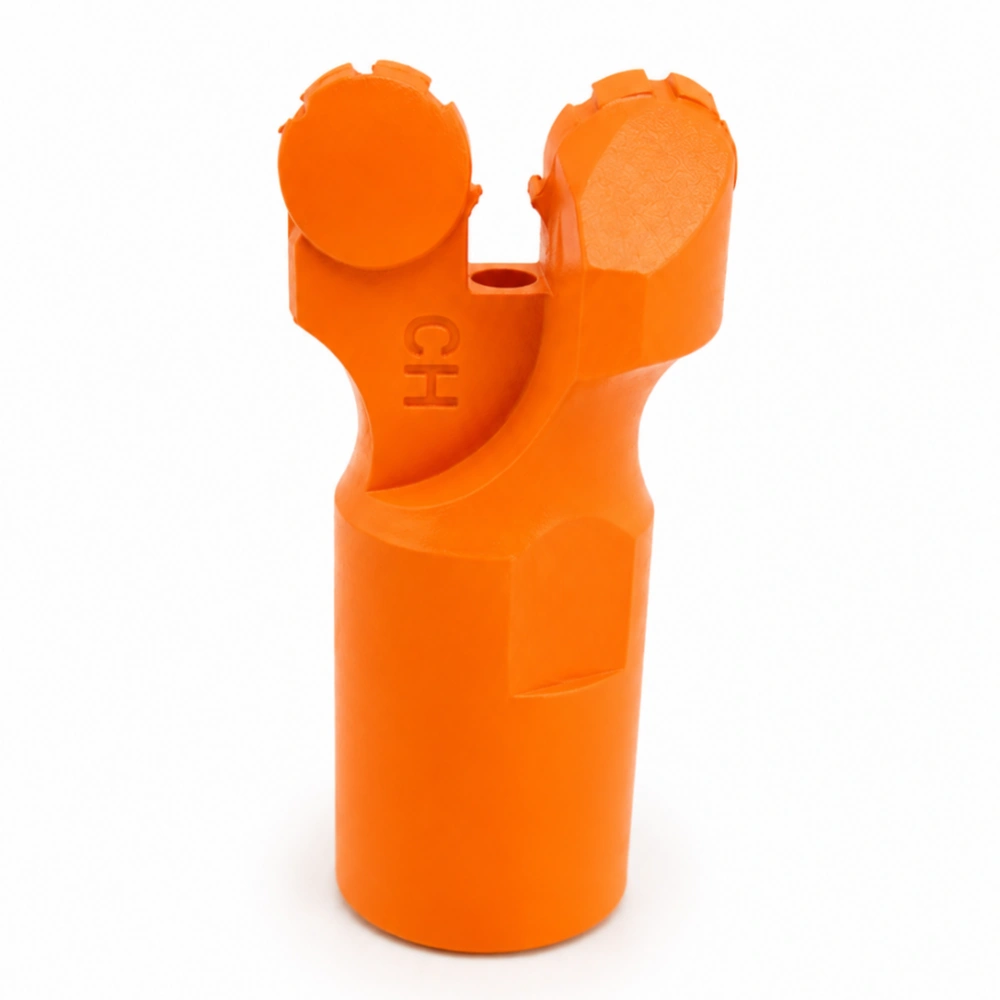

Super Strong Hard Rock PDC Anchor Drill Bit
Product Overview
The Super Strong Hard Rock PDC Anchor Drill Bit features a two-wing full-face design, specifically developed for high-hardness, fractured, and complex rock formations. It is ideal for small-diameter rock drilling applications such as coal mine support and tunnel engineering.
Designed for formations with Protodyakonov coefficient 8＜F＜12, this bit utilizes premium spherical polycrystalline diamond compact (PDC) cutters to enhance impact resistance and wear resistance, ensuring stable drilling performance under complex working conditions.
Note: F is the Protodyakonov coefficient, a key indicator of rock hardness in the mining industry.
Technical Specifications
1️⃣ Product Type
Structure: Two-wing full-face
Grade: Super Strong
Cutter Type: Spherical PDC cutters
2️⃣ Applicable Rock Formations
| Grade | Adapted Formation |
|---|---|
| Super Strong | 8＜F＜12 high-hardness fractured rock |
3️⃣ Standard Specifications
Bit Diameters: 25mm, 27mm, 28mm, 29mm, 30mm, 32mm, 36mm, 42mm
Common Connection Threads: M14×1.5, M16×2, M14×2, M12×2
👉 Non-standard customization available
PDC Cutter Type Comparison
To adapt to different rock structures, two types of diamond composite cutters are available:
🔹 Flat Face (Full-Face)
- ✓ Fast penetration rate
- ✓ High cutting efficiency
- ✓ Suitable for intact uniform formations
- ✓ Recommended for F≤12 formations
🔹 Spherical Face (Full-Face)
- ✓ Strong impact resistance
- ✓ Low risk of chipping
- ✓ Suitable for fractured & complex formations
- ✓ Recommended for 8＜F＜12 formations
Product Grade & Application Comparison
| Product Name | Grade | Cutter Type | Adapted Rock |
|---|---|---|---|
| PDC 2-Wing Anchor Bit | Super Strong | Full-face (Spherical) | F≤12 |
| PDC 2-Wing Anchor Bit | High Strength | Full-face (Flat) | F≤12 |
| PDC 2-Wing Anchor Bit | Reinforced | Half-face | F≤10 |
| PDC 2-Wing Anchor Bit | Standard | Half-face | F≤8 |
Core Advantages
Applications
Customization Available
We offer custom diameters, thread types, and cutter configurations to meet your specific project requirements. Contact us for a tailored solution.
Our Manufacturing Excellence
From precision machining to final assembly — every drill bit is crafted in our ISO 9001 certified facility.
