PDC Core Drill Bit
Wireline Coring | DCDMA Standard
🔷 Product Overview

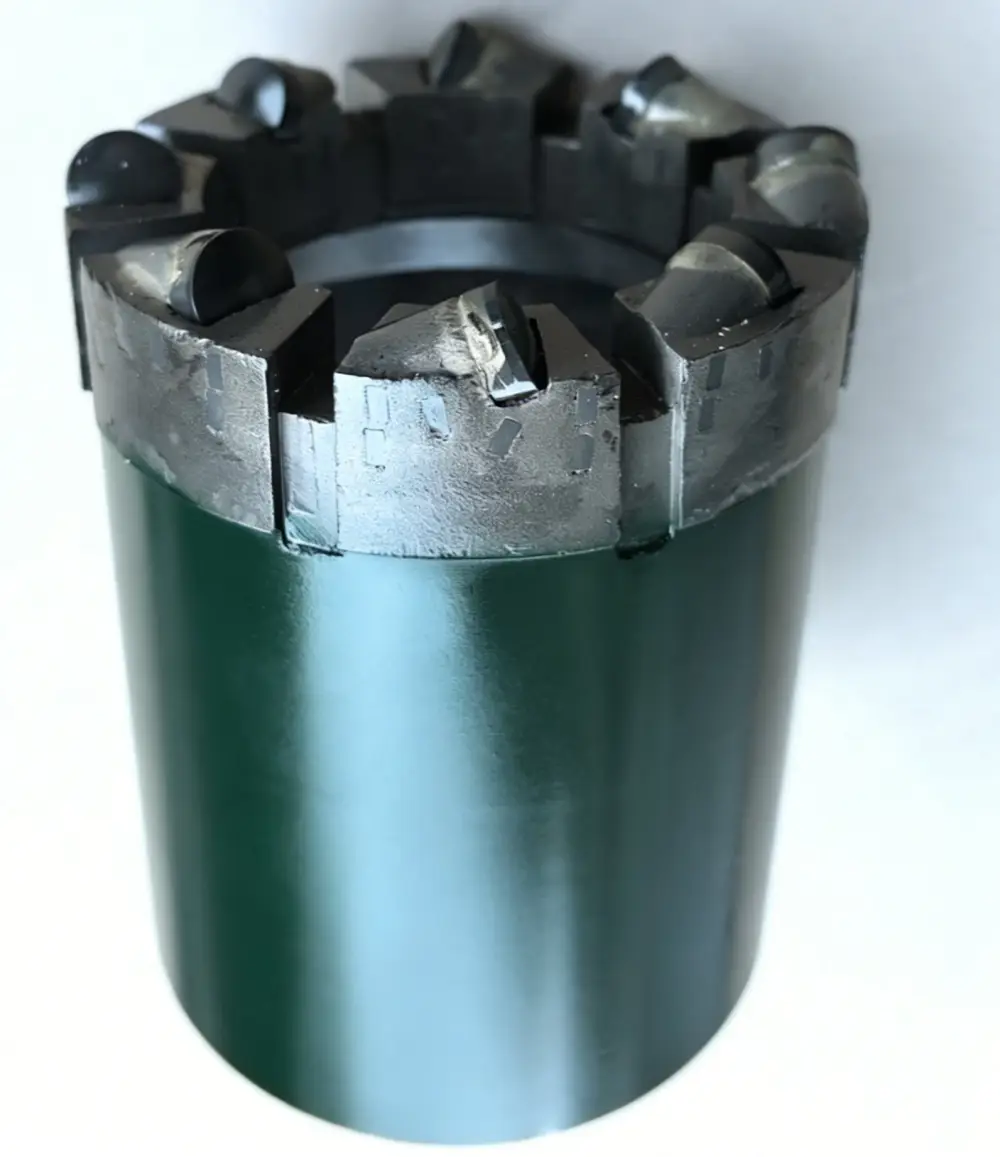

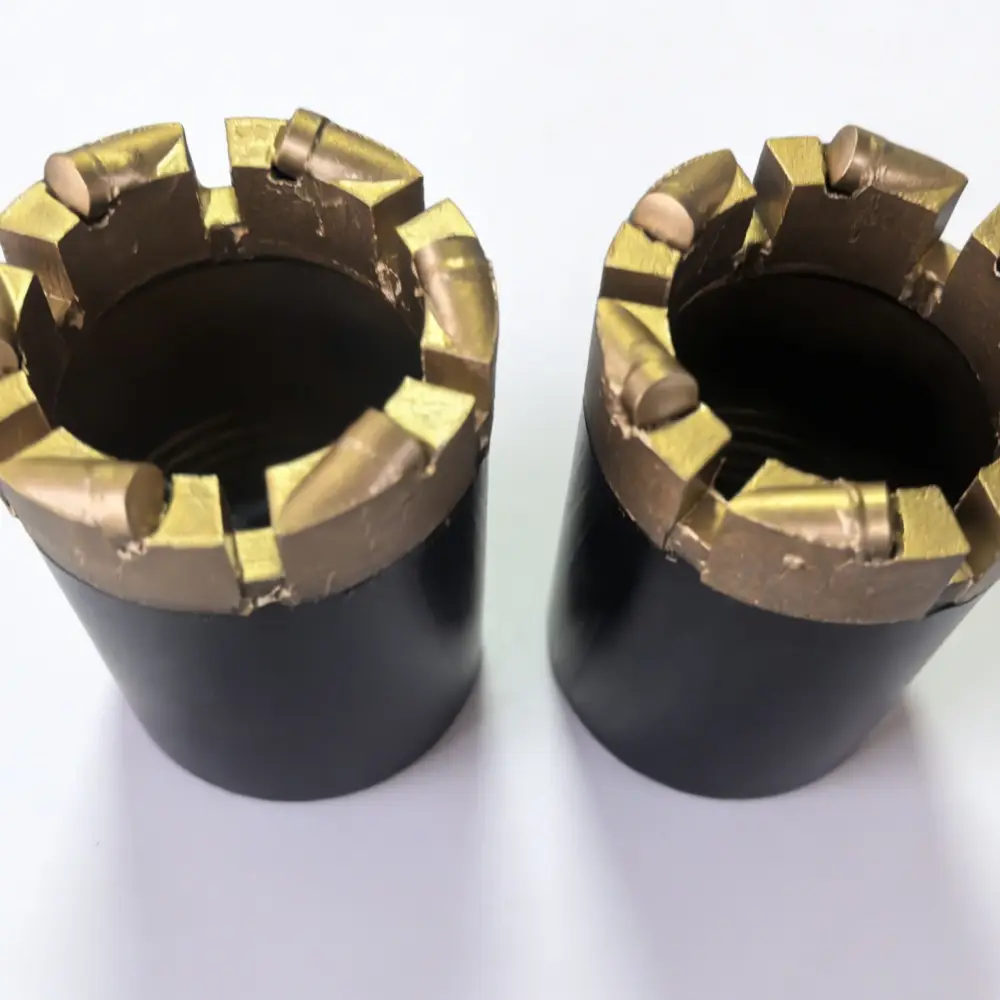

Our PDC Core Drill Bit is designed for wireline coring applications, widely used in mineral exploration, geological drilling, and water well projects. Equipped with high-quality polycrystalline diamond compact (PDC) cutters, the bit delivers fast penetration, high core recovery rate (up to 95%), and long service life in soft to medium-hard formations. Available in BQ, NQ, HQ, PQ and PQ3 sizes, fully compliant with DCDMA standards, ensuring global compatibility.
High Core Recovery (≥95%)
Superior core integrity and recovery rate for accurate geological data.
3–5x Faster Drilling Speed
Compared to impregnated diamond bits – dramatically reduces project time.
Premium PDC Cutters
1308/1613/1913 cutters for superior wear resistance and long lifespan.
Stable Hole Quality
Optimized blade layout ensures straight drilling and minimal deviation.
Optimized Hydraulic Design
Efficient cuttings removal, anti-balling, and better cooling.
Wireline Coring Compatible
Fully compatible with standard wireline systems for fast core retrieval.
📌 Applications
Ideal for soft to medium-hard rock formations including shale, sandstone, limestone (f = 3–10). The shear-cutting action of PDC ensures high ROP and excellent core quality, making it the preferred choice for exploration drilling worldwide.
📊 Technical Specifications
| Product Name | PDC Core Drill Bit |
|---|---|
| Type | Wireline Coring Bit |
| Standard | DCDMA |
| Available Sizes | BQ / NQ / HQ / PQ / PQ3 |
| Cutter Type | PDC (Polycrystalline Diamond Compact) |
| Cutter Size | 1308 / 1613 / 1913 |
| Blade Count | 3 – 6 Blades |
| Body Type | Matrix Body / Steel Body |
| Material | Tungsten Carbide + Alloy Steel |
| Thread Type | DCDMA / API |
| Core Recovery | ≥95% |
| Applicable Formation | Soft to Medium Hard Rock |
| Rock Type | Shale, Sandstone, Limestone |
| Hardness Range | f = 3 – 10 |
| Recommended RPM | 80 – 250 r/min |
| Recommended WOB | 6 – 15 kN |
| Flushing Medium | Water / Mud / Air / Foam |
| Customization | Available |
📏 DCDMA Standard Sizes – Core & Hole Diameter
| Size | Core Diameter (mm) | Hole Diameter (mm) |
|---|---|---|
| BQ | 36.4 mm | 60 mm |
| NQ | 47.6 mm | 75.7 mm |
| HQ | 63.5 mm | 96 mm |
| PQ | 85 mm | 122.6 mm |
| PQ3 | 85 mm (Triple tube) | 122.6 mm |

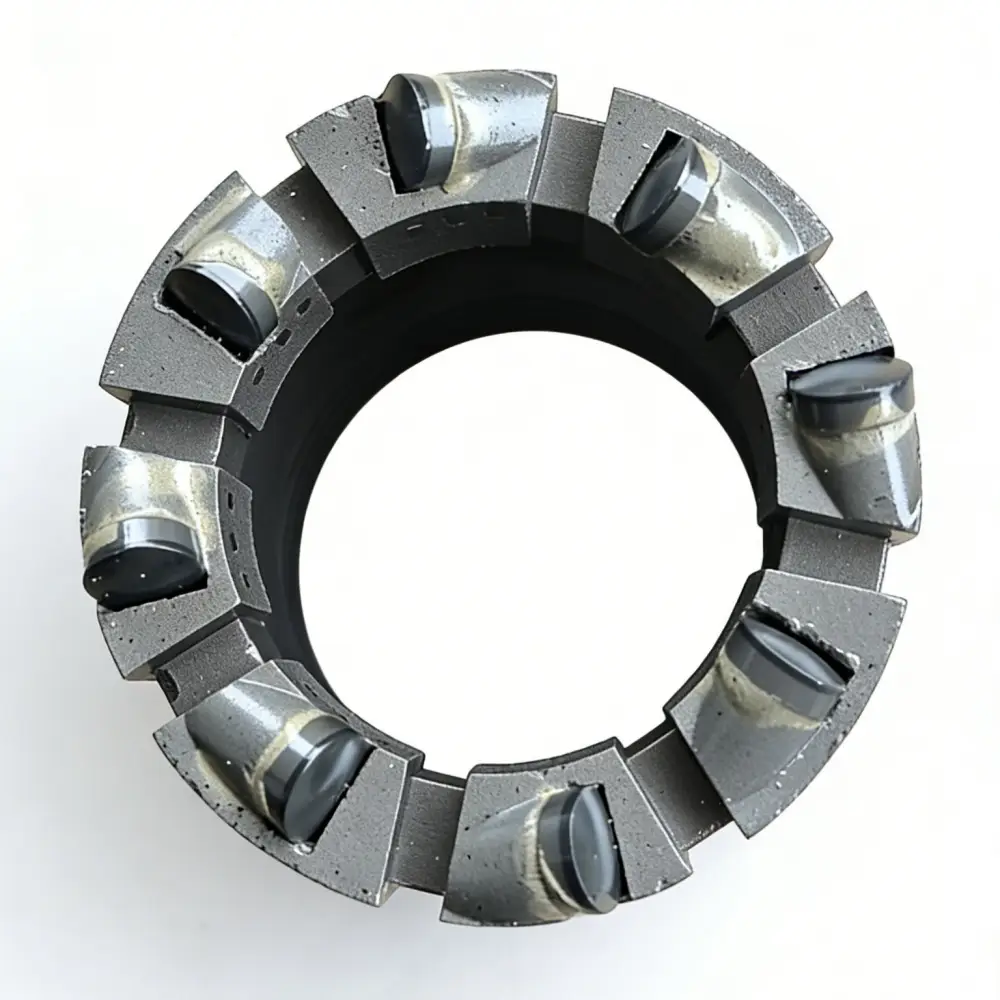

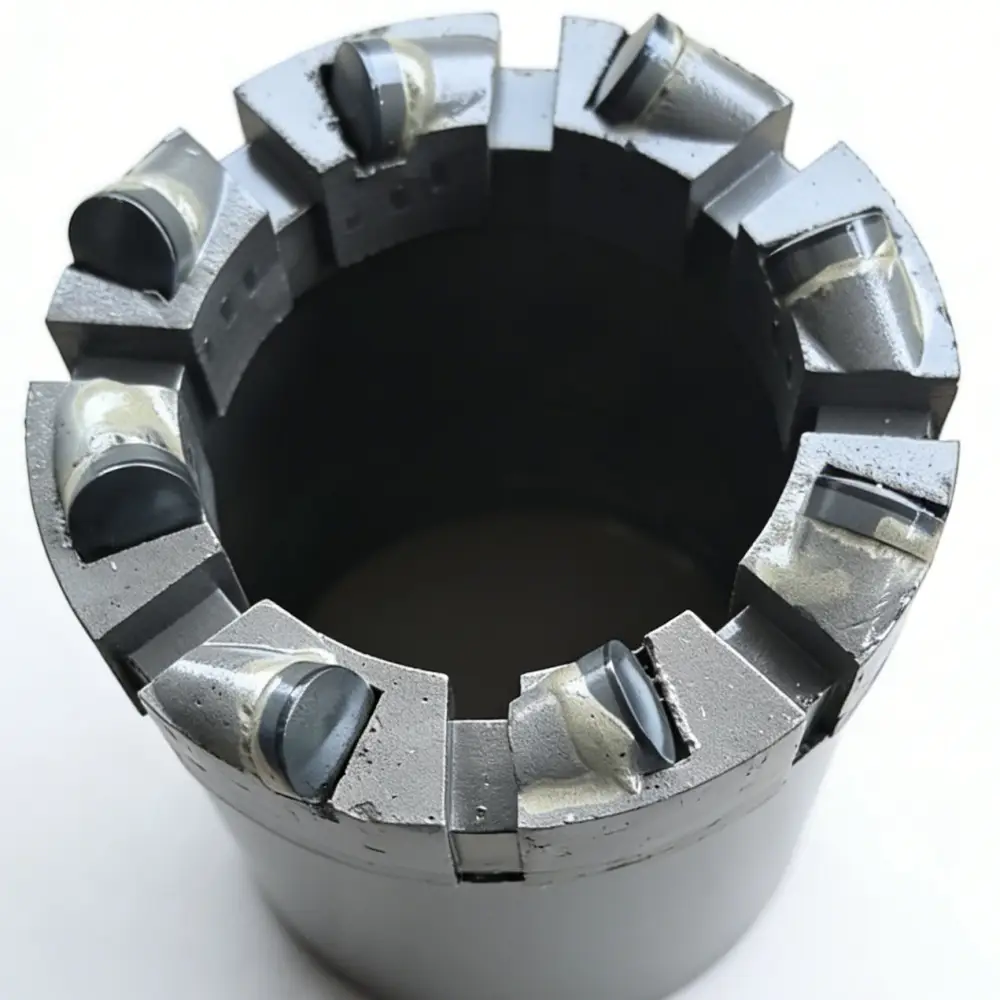

🔧 Bit Structure & Shearing Principle
Design Highlights
- PDC cutters mounted on crown for efficient shearing action
- Optimized blade layout for smooth cutting and reduced torque
- Reinforced gauge protection maintains hole diameter
- Wide fluid channels for efficient cleaning and cooling
- Shear rock breaking principle → much faster than grinding
💡 How PDC Shearing Works:
Unlike impregnated bits that grind rock, PDC cutters shear the formation. This results in 3–5x higher penetration rates, less energy consumption, and superior core recovery. The arc crown and optimized blade geometry further enhance stability in wireline applications.
⚡ PDC Core Bit vs. Impregnated Diamond Bit
| Feature | PDC Core Bit (Ours) | Impregnated Bit |
|---|---|---|
| Drilling Speed | Fast (3–5x faster) | Slow |
| Core Recovery | High (≥95%) | Medium |
| Service Life | Long | Medium |
| Cost Efficiency | High – lower cost per meter | Lower |
| Best Formation | Soft to medium-hard (f=3-10) | Hard to very hard |
🔥 Why Choose Our PDC Core Drill Bit
3–5x Faster Drilling
Reduce rig time and accelerate project completion.
High Core Recovery (≥95%)
Better geological data, less re-drilling.
Long Lifespan → Lower Cost Per Meter
Fewer bit changes, less downtime.
Stable Quality & Straight Holes
Minimized deviation, precise coring.

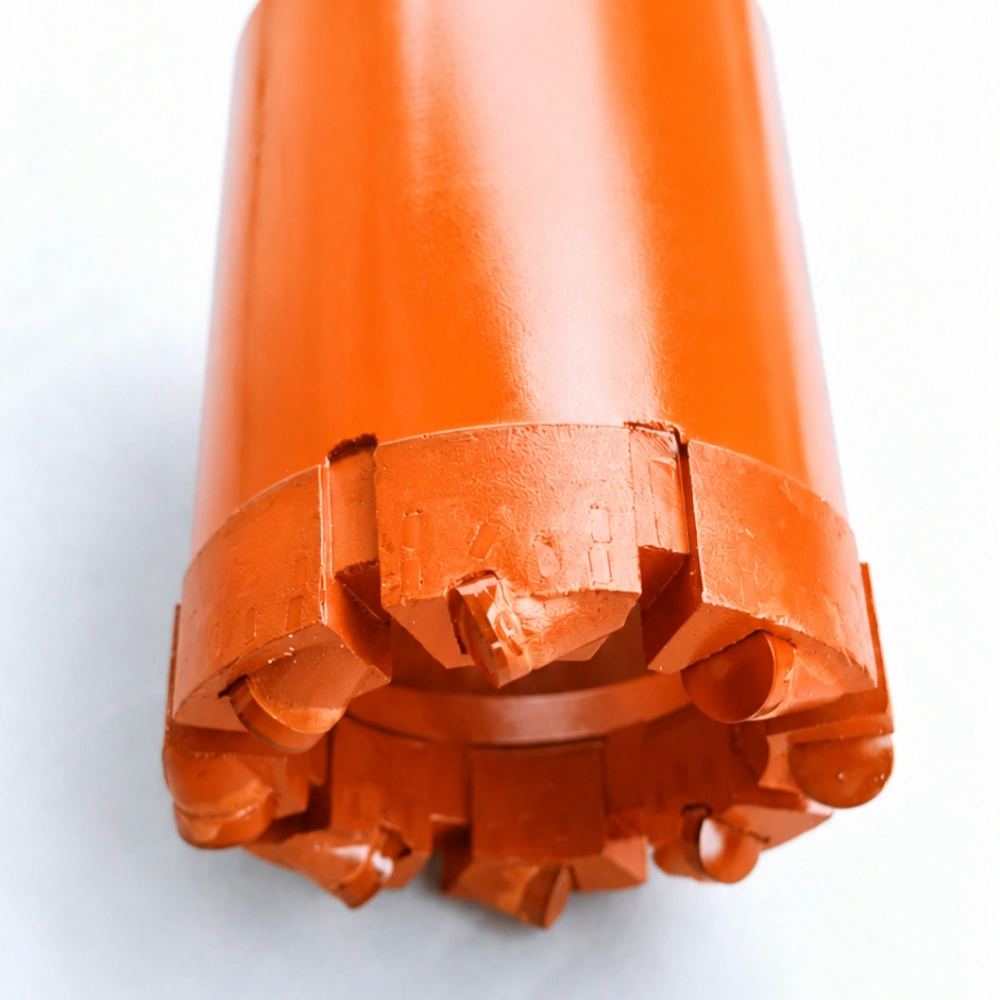

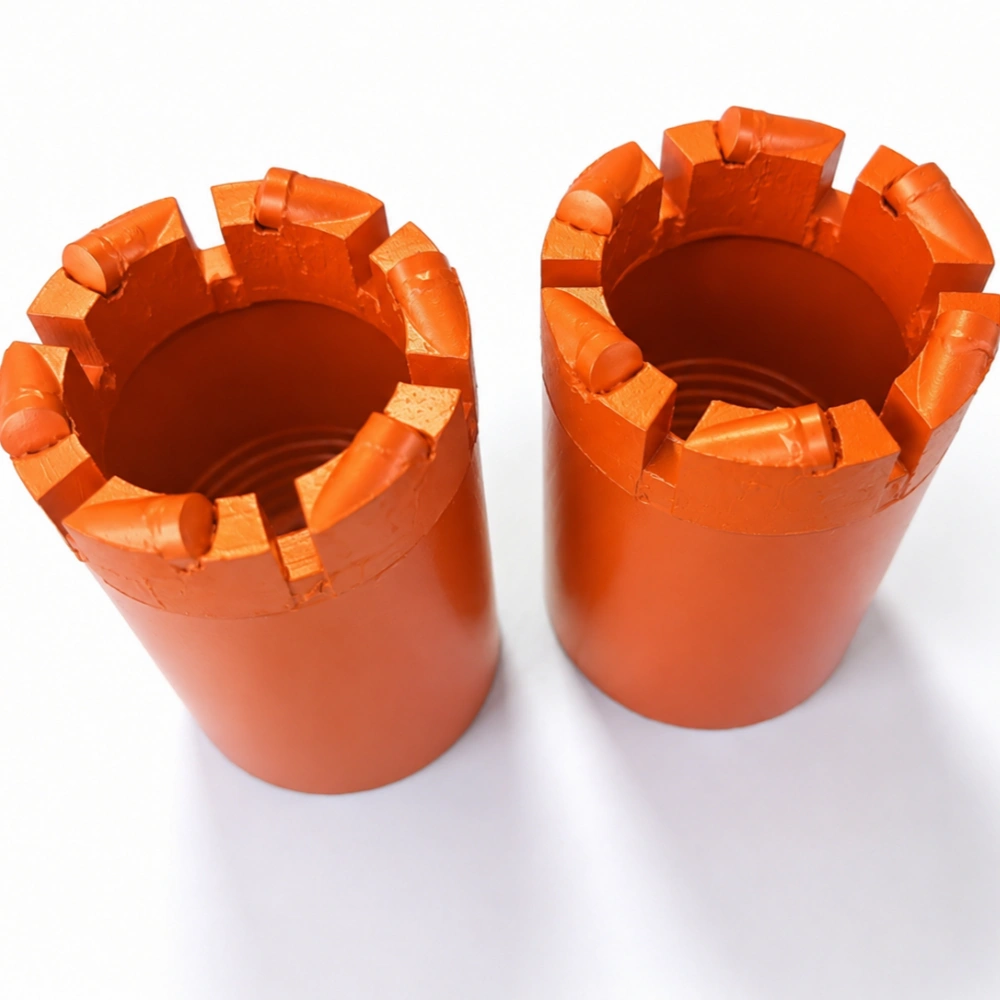

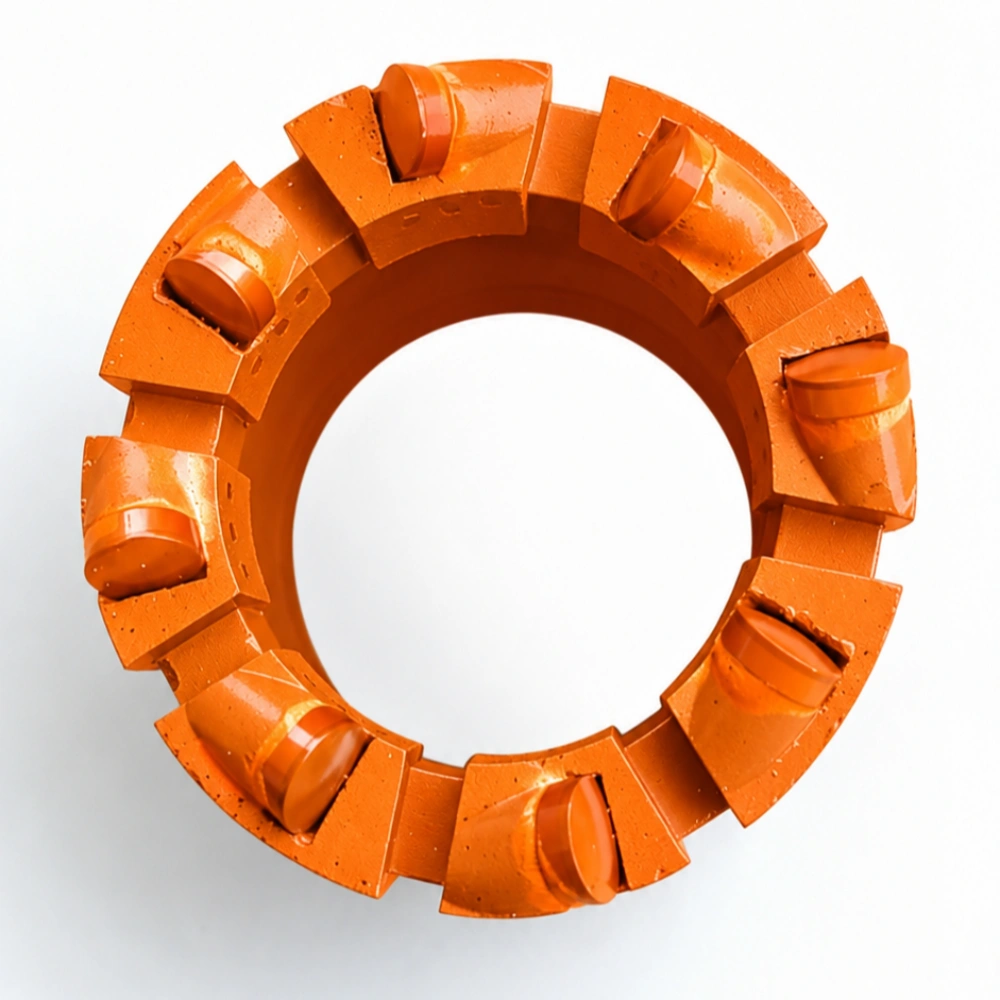

OEM / ODM Customization
Custom sizes, threads, cutter grades, and blade counts.
ISO 9001 Certified Manufacturer
15+ years exporting to 40+ countries. Rigorous quality control.
🏭 Our Manufacturing Excellence
From precision machining to final assembly — every drill bit is crafted in our ISO 9001 certified facility.
🛠️ Explore Our Full Range of Drilling Tools
From surface to downhole, we offer a complete lineup of high-performance drill bits and accessories engineered for every formation and application.
PDC Non-Coring Drill Bit
Fast penetration in soft to medium formations without core recovery.
PDC Exploration Core Drill Bit
High core recovery and durability in exploration drilling.
Hot-Pressed Diamond Drill Bit
Ideal for very hard and abrasive rock formations.
Electroplated Diamond Drill Bit
Excellent for non-ferrous materials and precision drilling.
Tricone Rock Drill Bit
Rolling cone bits for a wide range of formations.
Alloy Scraper Drill Bit
Effective in soft and sticky formations.
Pick Cutter Bit
Heavy-duty cutting for mining and trenching.
DTH Hammer
High-frequency impact for deep hole drilling.
Custom Drill Bit
Tailor-made solutions for your specific project.
Drilling Rigs and Accessories
Complete drilling systems and support equipment.
Contact us to learn more about any product — we provide fast quotes and technical support.
🏭 Direct Factory – Best Pricing
We manufacture in-house with strict quality control. No middlemen, just premium bits at factory-direct prices.
🔬 Certified Quality
ISO 9001:2015 certified. 100% weld inspection, dimensional check, and performance testing before shipping.
✈️ Global Logistics
Professional export packaging, sea/air freight, and door-to-door delivery. Stock items ship within 5–7 days.
Ready to Increase Core Recovery & Drilling Speed?
Request a free quote – tell us your required size (BQ/NQ/HQ/PQ) and formation details. We respond within 24 hours.
Customized solutions for mineral exploration, geological surveys, and water well coring.
📞 Contact Our Engineers
✔ Technical specs, pricing, or custom design – we’re here to help. Response within 24h.
❓ Frequently Asked Questions
Soft to medium-hard formations (f=3–10) including shale, sandstone, limestone, claystone, and chalk. For extremely hard rock, impregnated bits may be recommended.
Our PDC core bits consistently achieve ≥95% core recovery in optimal conditions, providing excellent geological sample integrity.
Yes, all bits are manufactured to DCDMA standards and fully compatible with major wireline coring systems.
Absolutely. We offer OEM customization including special diameters, API threads, custom cutter grades, and blade configurations.
Standard sizes are typically in stock and ship within 5–7 days. Custom orders: 15–20 days. Worldwide shipping available.
