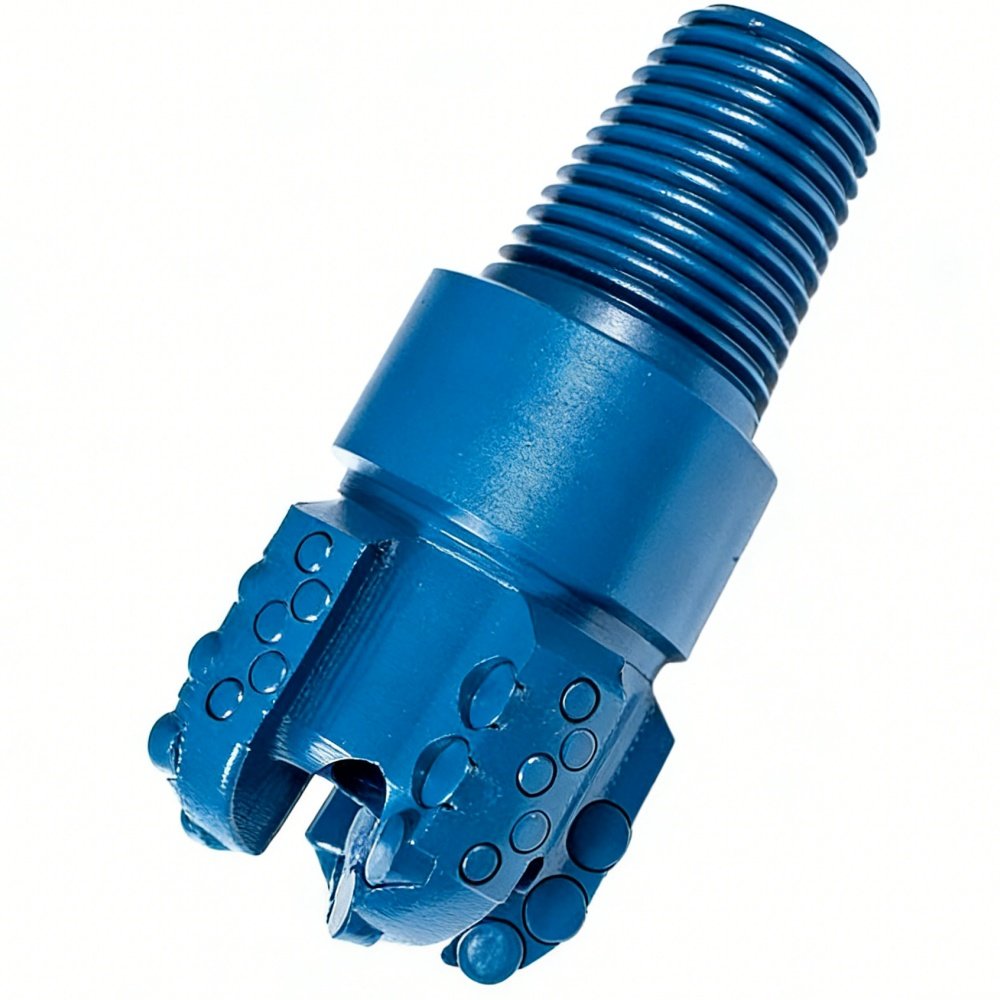

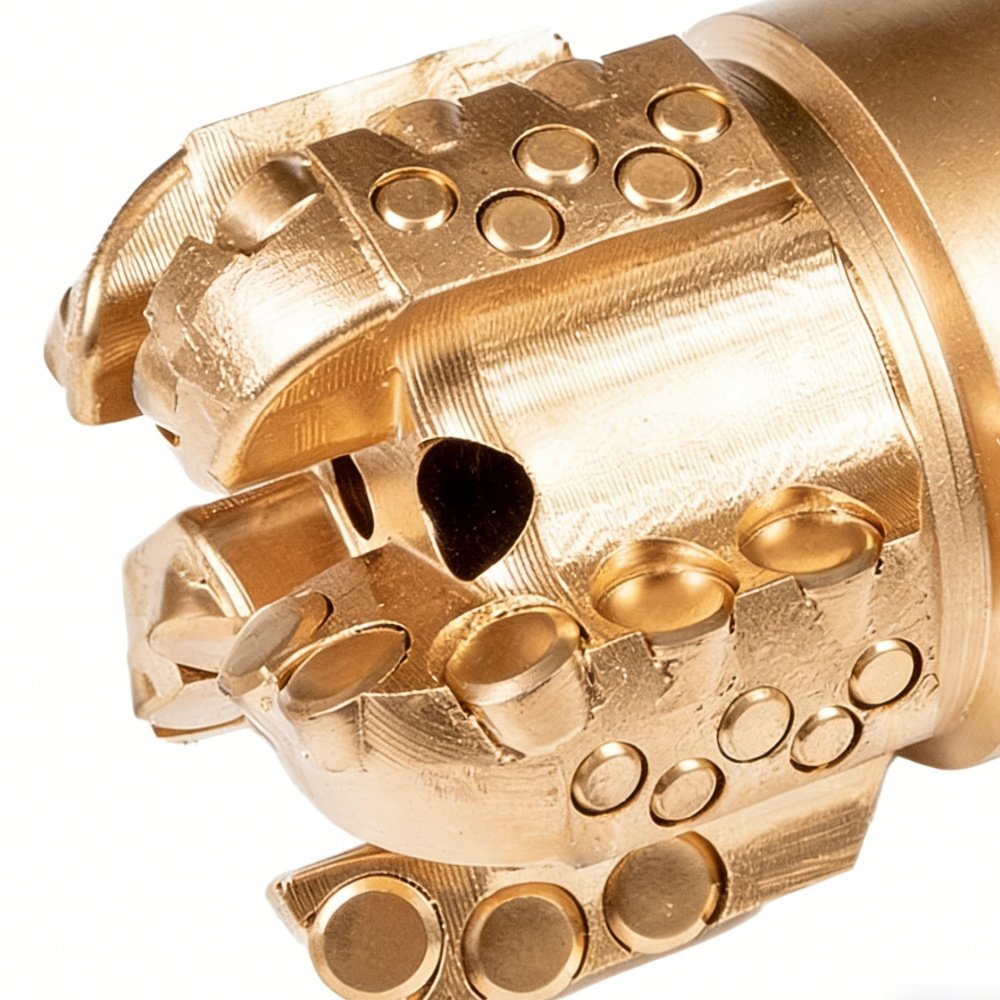

PDC Arc Drill Bit for Water Well & Exploration
🔷 Product Overview
The PDC Arc Drill Bit is specially engineered for water well drilling applications. It features an optimized arc crown structure that improves drilling stability and penetration efficiency.
Equipped with high-quality PDC cutters (1308 / 1613 / 1913), this bit delivers excellent wear resistance and long service life. Consequently, it performs exceptionally well in soft to medium-hard formations such as sandstone, shale, and limestone.

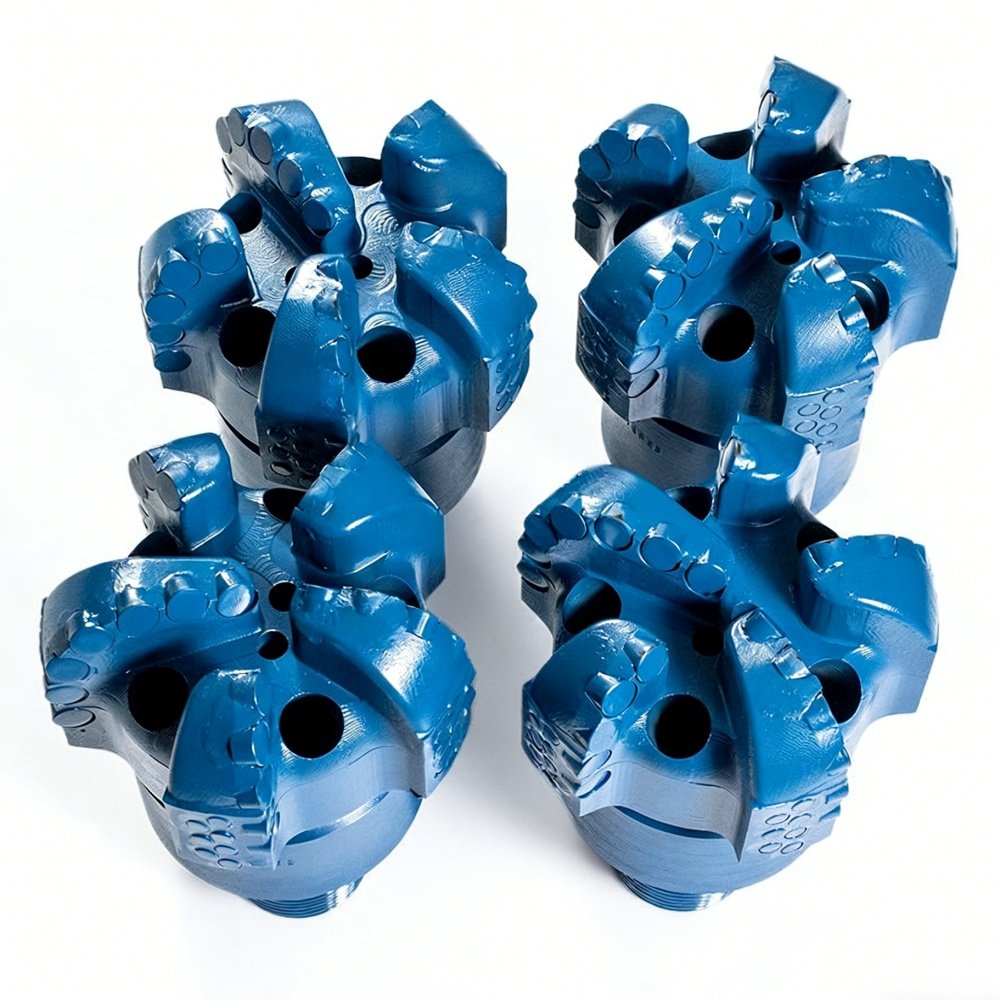

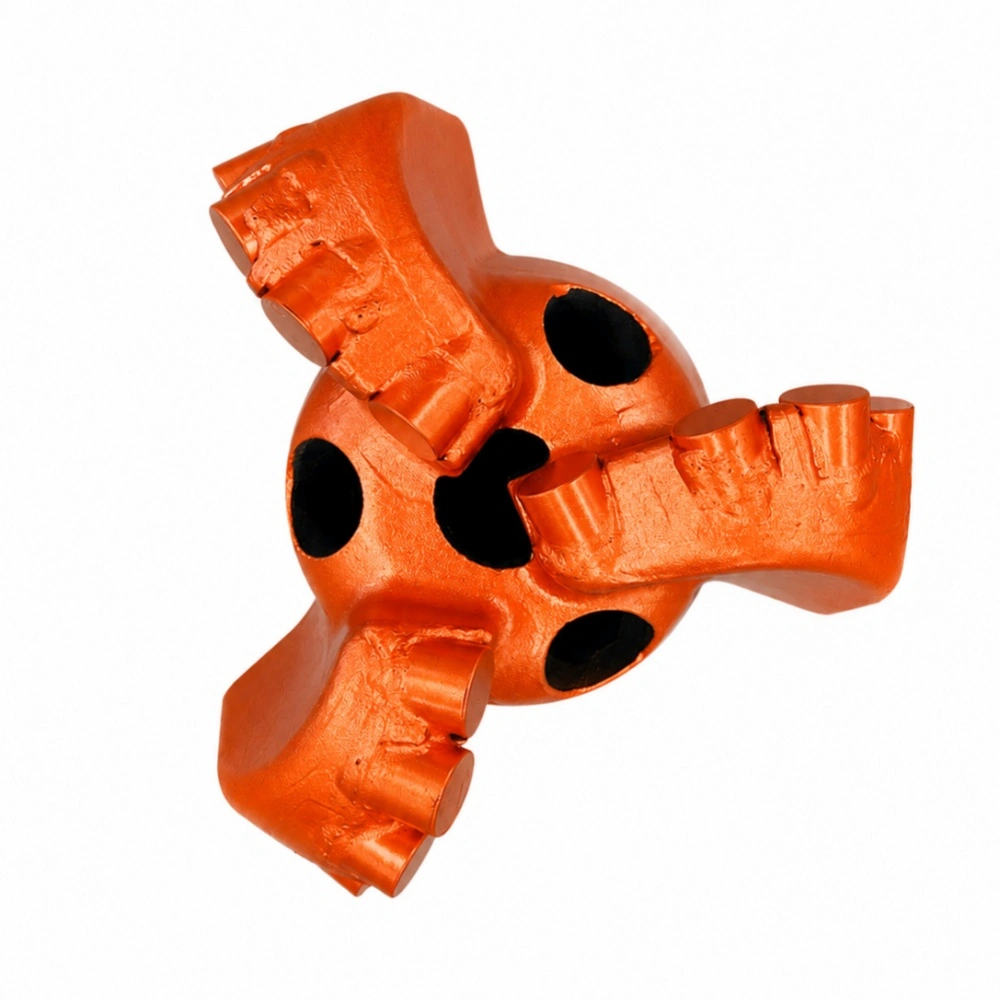

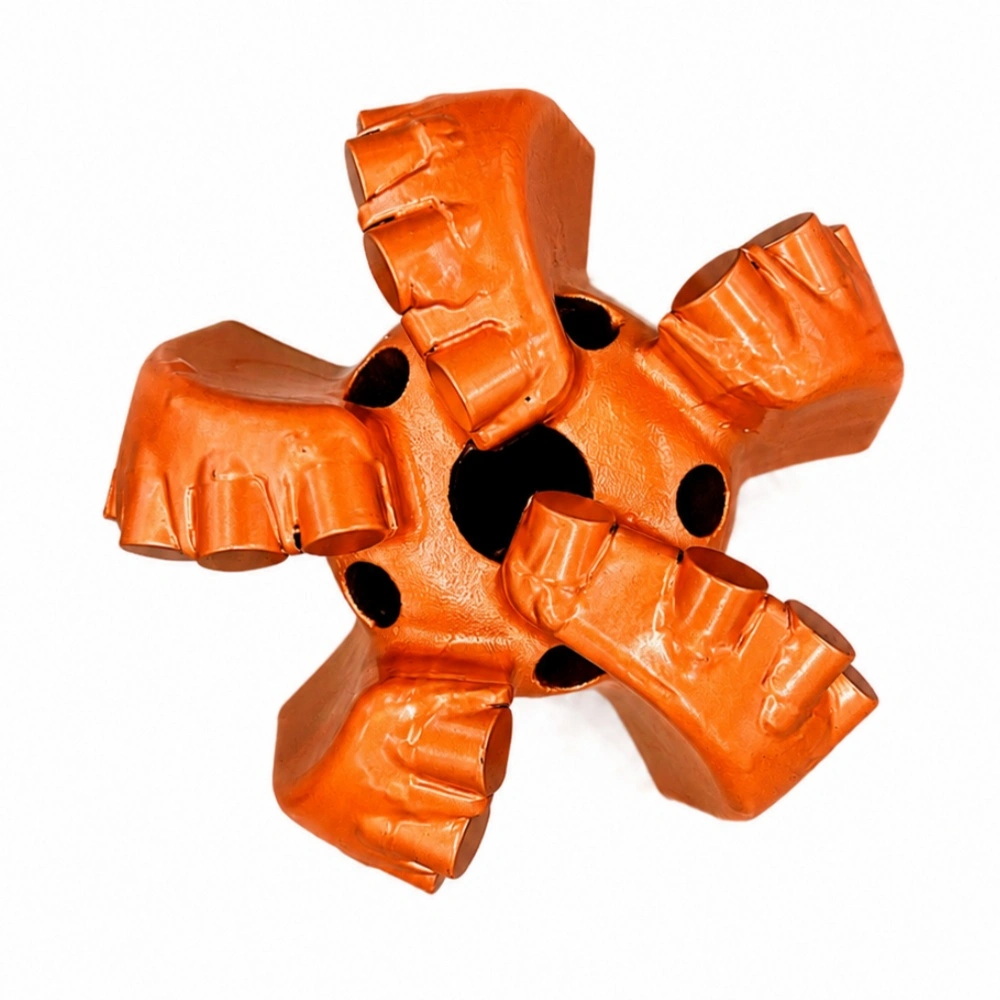

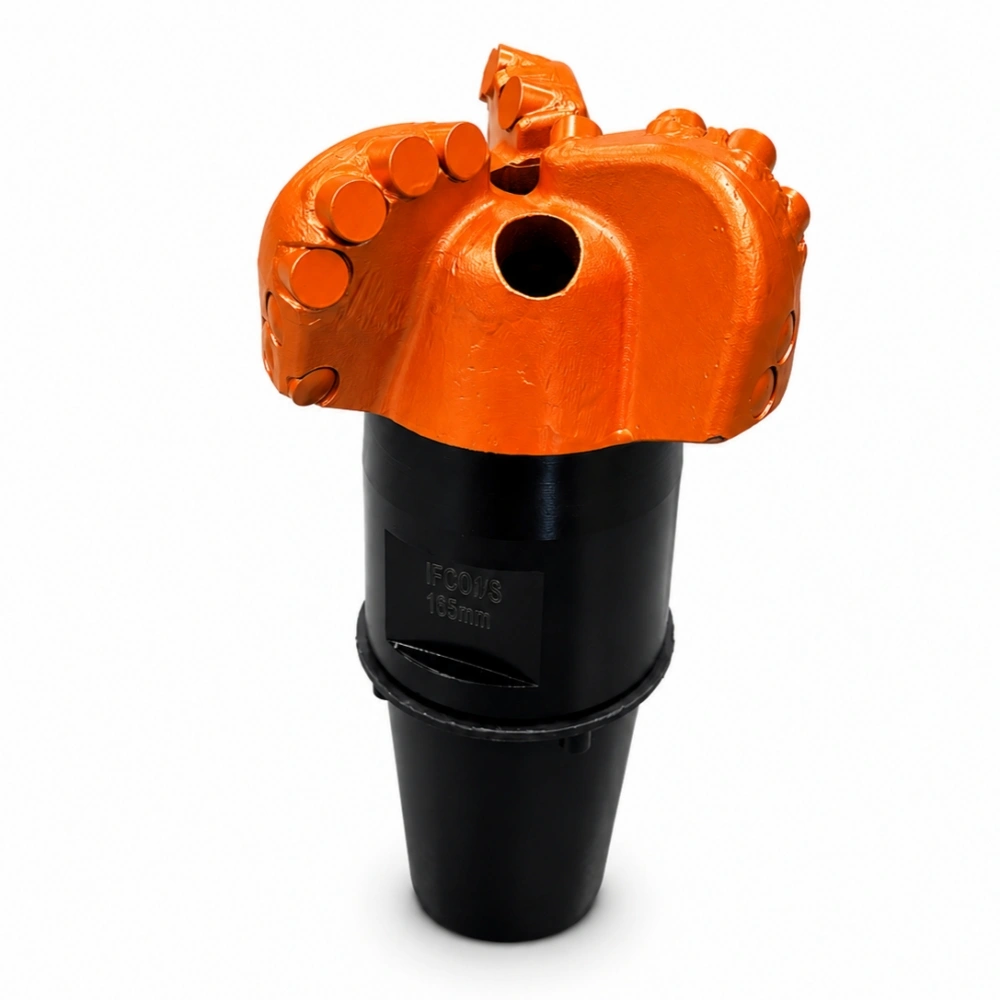

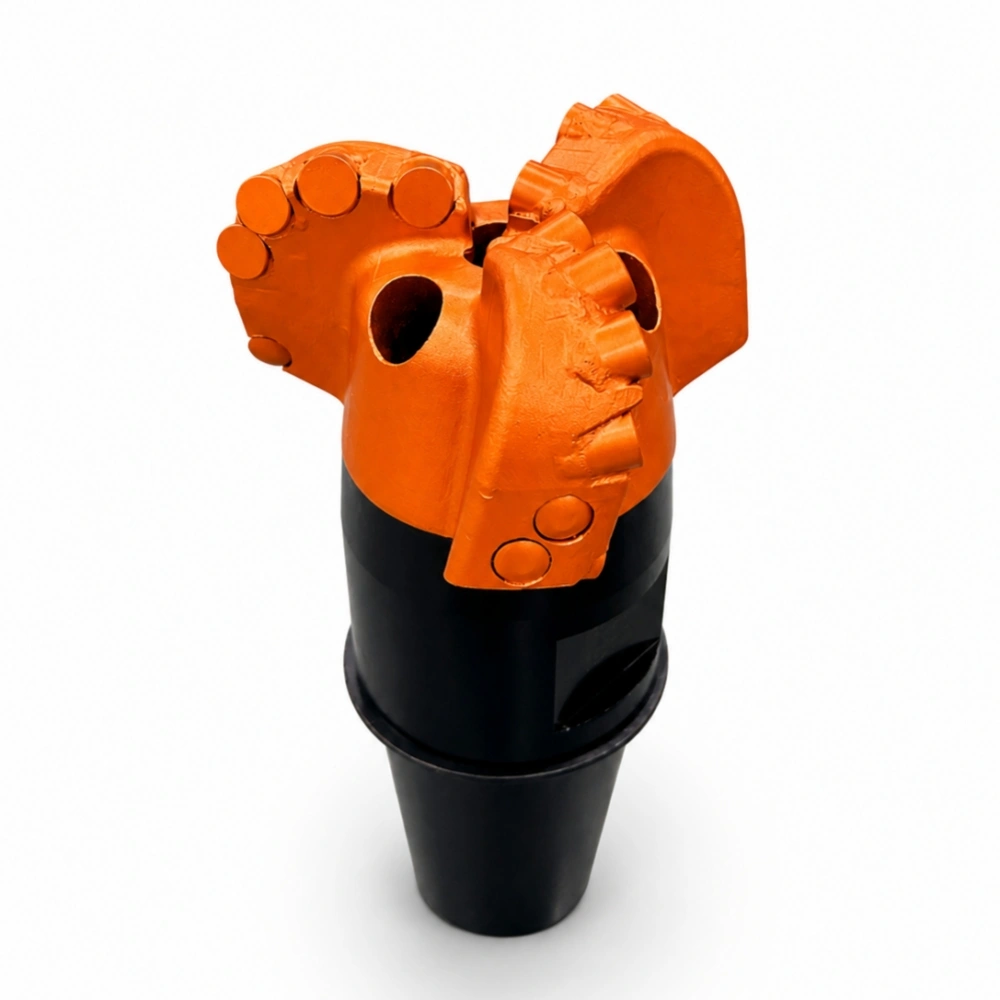

Furthermore, it is available in 3 blade, 4 blade, and 5 blade configurations. This ensures flexible adaptation to different drilling conditions.
✨ Key Features
Arc Crown Design
Smoother drilling, better stability, reduced vibration in water well and exploration.High-Performance PDC Cutters
1308/1613/1913 options provide faster penetration rate and superior wear resistance.Optimized Hydraulic Structure
Efficient cuttings removal, anti-balling, and cooling for extended bit life.Alloy Steel Body
42CrMo high strength, repairable, HRC 40-45 for durability.API Standard Thread
2 3/8″ to 7 5/8″ API Reg, compatible with global drilling rigs.Multi-Blade Design
3/4/5 blades adaptable to various formations from soft to medium-hard.📌 Applications
This bit is ideal for sandstone, shale, limestone, and other soft to medium-hard strata. In particular, the arc crown geometry reduces stick-slip. Therefore, it is perfect for water well projects demanding high ROP and stable borehole quality.
📊 Technical Specifications
| Product Name | PDC Arc Drill Bit |
|---|---|
| Blade Type | 3 / 4 / 5 Blades |
| Bit Type | Steel Body PDC Bit |
| Cutter Size | 1308 / 1613 / 1913 |
| Bit Diameter | 3″ – 17 ½” (76mm – 445mm) |
| Thread Type | API Reg (2 3/8″ – 7 5/8″) |
| Nozzle Quantity | 3 – 9 pcs |
| Material | 42CrMo Alloy Steel |
| Hardness | HRC 40-45 |
| Welding Strength | ≥280 MPa |
| Applicable Formation | Soft to Medium Hard (Shale, Sandstone, Limestone) |
| Recommended RPM | 60 – 250 r/min |
| Recommended WOB | 0.4 – 2.0 kN/mm |
| Body Type | Arc / Concave Design |
| Customization | Available (Size, Thread, Blade, Cutter) |
📏 Size & Configuration Table
| Size (inch) | Size (mm) | Blade Options | Thread (API) |
|---|---|---|---|
| 3 ½” | 89mm | 3 / 4 | 2 3/8 API |
| 4 ⅝” | 118mm | 3 / 4 | 2 7/8 API |
| 6″ | 152mm | 3 / 4 / 5 | 3 1/2 API |
| 7 ⅞” | 200mm | 4 / 5 | 4 1/2 API |
| 8 ½” | 216mm | 4 / 5 | 4 1/2 API |
| 12 ¼” | 311mm | 4 / 5 | 6 5/8 API |
* Other diameters up to 17 ½” are available upon request. OEM custom blades and threads are supported.
⚡ Why Choose PDC Arc Over Traditional Tricone Bits?
50% Higher Drilling Efficiency
Continuous shearing action delivers faster ROP in soft to medium formations compared to rolling cone bits.No Moving Parts → Lower Failure Rate
This eliminates bearing and seal failures. As a result, it is more reliable in water well and exploration drilling.Longer Lifespan → Fewer Replacements
Premium PDC cutters and arc crown design extend bit life by 2-3x compared to tricone bits.🔥 Why Choose Our PDC Arc Drill Bit
Faster Drilling Speed
Reduce project time and rig operating costs.Lower Cost Per Meter
Longer service life means fewer bits and better ROI.Stable Performance
Fewer trips, less downtime, consistent borehole quality.Factory Direct Price
Competitive pricing with ISO 9001 quality control.OEM / ODM Supported
Custom diameters, threads, cutter grades, and blade counts.Global Shipping & Support
Export packing, fast delivery, and after-sales technical assistance.🏭 ISO 9001 Certified Manufacturer
With 15+ years of experience, we export drilling tools to over 40 countries. Every bit is inspected, flow-tested, and ready for harsh conditions.🔬 Quality Control
We perform 100% weld inspection, hardness test, dimensional check, and cutter brazing verification.✈️ Export Experience
We provide professional wooden cases, sea/air freight, and door-to-door logistics partners.🏭 Our Manufacturing Excellence
From precision machining to final assembly — every PDC arc bit is crafted in our ISO 9001 certified facility.
🛠️ Explore Our Full Range of Drilling Tools
From surface to downhole, we offer a complete lineup of high-performance drill bits and accessories engineered for every formation and application. Click any product to learn more.
PDC Non-Coring Drill Bit
Fast penetration in soft to medium formations without core recovery.
PDC Exploration Core Drill Bit
High core recovery and durability in exploration drilling.
Hot-Pressed Diamond Drill Bit
Ideal for very hard and abrasive rock formations.
Electroplated Diamond Drill Bit
Excellent for non-ferrous materials and precision drilling.
Tricone Rock Drill Bit
Rolling cone bits for a wide range of formations.
Alloy Scraper Drill Bit
Effective in soft and sticky formations.
Pick Cutter Bit
Heavy-duty cutting for mining and trenching.
DTH Hammer
High-frequency impact for deep hole drilling.
Custom Drill Bit
Tailor-made solutions for your specific project.
Drilling Rigs and Accessories
Complete drilling systems and support equipment.
Contact us to learn more about any product — we provide fast quotes and technical support.
Ready to Boost Your Drilling Efficiency?
Request a free quote – tell us your diameter, formation, and blade preference. We respond within 24 hours.
Customized solutions for water well, geothermal, and exploration projects.
📬 Let’s talk about your water well project
Whether you need a standard PDC arc bit or a fully customized solution, our engineering team is ready to support you with fast quotes and technical advice.
- ⚡ Response within 24h — guaranteed
- 🔧 OEM / custom diameters, blades, cutter grades, threads
- 📦 Global shipping & export documentation
- 📄 Free technical datasheet & performance report
Speak directly with Nancy
📱 WhatsApp direct: +86 189 4499 5320
📧 Email address: Nancy@drillmfg.com
🕒 Business hours: Monday–Friday, 8:00–18:00 (GMT+8)
❓ Frequently Asked Questions
Soft to medium-hard formations such as sandstone, shale, limestone, claystone, and medium-hard chalk. However, it is not recommended for extremely hard granite or highly abrasive quartzite.
Absolutely. We offer 3, 4, and 5 blades, plus cutter sizes 1308/1613/1913. Additionally, we support custom cutter grades and blade profiles based on your specific lithology.
The arc crown increases contact stability and reduces lateral vibrations. It also provides smoother torque response. Therefore, it is ideal for deeper water wells where hole deviation must be minimized.
Standard diameters (6″, 8½”, 12¼”) are usually in stock and ship within 5-7 days. For custom bits, lead time is 15-20 days. Worldwide shipping by air or sea is available.
Yes, we offer full OEM services. For instance, we can provide custom threads (any API or proprietary), laser logo engraving, and special hardfacing upon request.
