CH-JG360 Water & Air Drilling Rig
90–300m Water Well & Borehole Drilling Solution
90–300 m Depth
90–400 mm Diameter
Water + Air Drilling
Custom Config
▶ CH-JG360 drilling operation – water & air drilling flexibility for 90–300m projects.

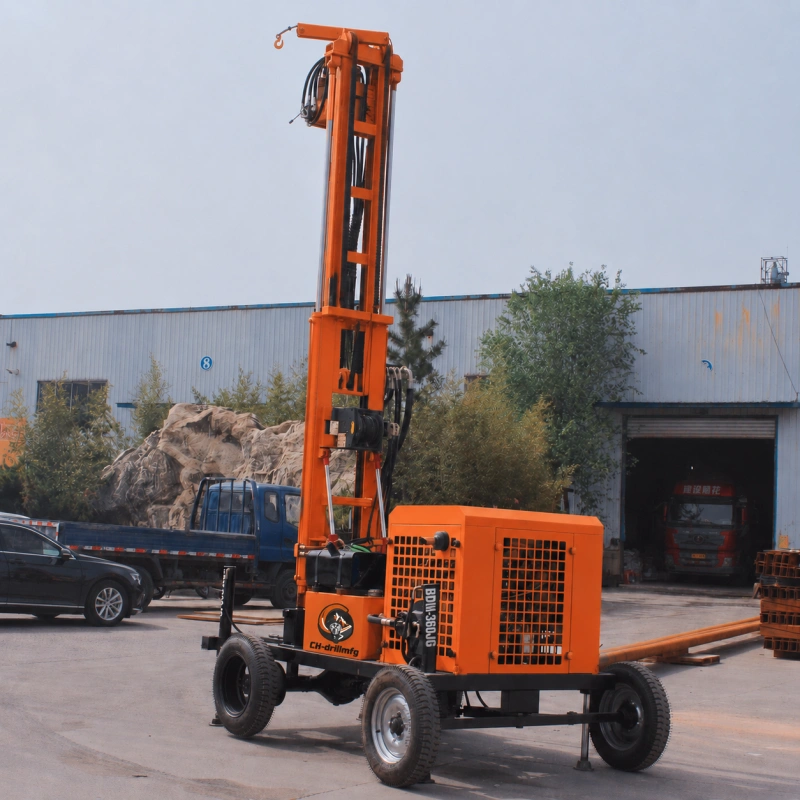

📷 Dual-purpose water-vapor drilling rig

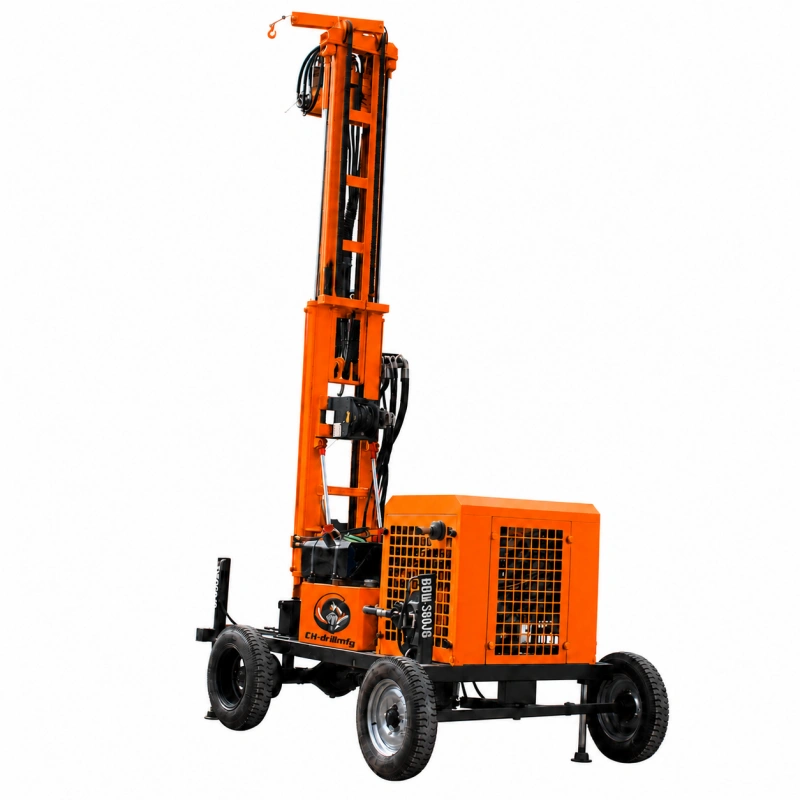

The CH-JG360 is a versatile drilling machine designed for water well drilling, borehole drilling, geological exploration, and engineering drilling applications. It offers a drilling depth of 90–300 m and a hole diameter range of 90–400 mm.
Notably, this rig supports both water-assisted and air-assisted drilling configurations. As a result, it adapts effectively to different geological conditions and project requirements. Furthermore, its flexible design makes it a practical choice for contractors and drilling teams.
🔹 Impact Rotary Drilling
🔹 44 HP / 16.4 kW Engine
🔹 6000 kg Lifting Capacity
🔹 76 mm × 2 m Drill Pipe
90–300
Drilling Depth (m)
90–400
Drilling Diameter (mm)
44 HP
Engine Power
76×2
Drill Pipe (mm×m)
💧💨
Water + Air Drilling
6000
Lifting Capacity (kg)
Key Features of the CH-JG360
Up to 300m Drilling Depth
This rig supports 90–300 m depth for water well, borehole, and geological projects. However, the actual depth varies with diameter, geology, and configuration.Wide 90–400mm Diameter
It provides flexibility for different borehole and well requirements. Specifically, the diameter is selected based on well structure and formation.Water & Air Drilling Options
Users can configure it for water-assisted or compressed-air drilling. Consequently, it adapts to different formations and project needs.Impact Rotary Drilling
The machine combines rotary movement with impact action. Meanwhile, the drilling tools are selected per the specific geology.44 HP Engine Power
It features an approximate 16.4 kW / 44 HP diesel engine. Moreover, the engine configuration can be customized per project requirements.6000kg Lifting Capacity
This capacity supports drill pipe handling and drilling operations. In addition, it ensures smooth performance under suitable working conditions.Customizable for Different Projects
The engine, travel system, drill pipes, water pump, DTH hammers, bits, and accessories can all be configured. Therefore, simply provide the depth, diameter, formation, and method for a tailored solution.CH-JG360 Technical Specifications
| Parameter | Specification |
|---|---|
| Model | CH-JG360 |
| Drilling Type | Water / Air Drilling |
| Drilling Depth | 90–300 m |
| Drilling Diameter | 90–400 mm |
| Drill Pipe Diameter | 76 mm |
| Drill Pipe Length | 2 m |
| Drilling Method | Impact Rotation |
| Machine Dimensions | 2500 × 1400 × 2800 mm |
| Machine Weight | Approx. 3000 kg (drill pipes not included) |
| Rod Replacement Method | Thread Connection |
| Engine Power | 16.4 kW / 44 HP |
| Water Pump | 4-inch Centrifugal Water Pump |
| Mast / Lifting Height | Approx. 3.5 m |
| Lifting Capacity | Approx. 6000 kg |
| Engine Configuration | Customizable |
| Travel System | Optional Track Drive / Customized Configuration |
| Customized Configuration | Available |
Technical Note: Specifications may vary depending on machine configuration, geological conditions, drilling depth, hole diameter, and drilling method. Therefore, please confirm the final configuration before ordering.
Flexible Water & Air Drilling for Different Formations
💧
Water-Assisted Drilling
This method suits soil, sedimentary, and rock formations where water circulation is needed. For instance, a typical configuration includes a 4-inch centrifugal pump, drill pipes, bits, and water circulation equipment.💨
Air-Assisted Drilling
This approach works well for suitable rock formations. It requires an air compressor, DTH hammer, DTH bit, drill pipes, and air accessories. The selection depends on hole diameter, depth, and rock hardness.❓ Not sure which drilling method? Simply send us your rock formation, required depth, and diameter. We’ll help evaluate a suitable combination.
Match the Right Drilling Tool to the Formation
PDC
PDC Drill Bits
These bits are recommended for soft to medium formations such as clay, mudstone, soft sandstone, coal, and weathered rock. They deliver efficient cutting performance.
Tricone
Tricone Drill Bits
These are versatile for different formations. TCI and steel tooth options can be matched to rock hardness for optimal results.
DTH
DTH Hammers & Bits
These are designed for hard-rock air drilling. They are particularly recommended when the CH-JG360 is configured with compressed air.
Accessories
Drill Pipes & Accessories
We offer a full range of rods, adapters, and supporting tools to ensure complete system compatibility.Applications
How to Choose the Right CH-JG360 Configuration
For a more accurate machine recommendation, please provide the following information:
01 Required Drilling Depth
02 Required Hole Diameter
03 Geological Formation
04 Preferred Drilling Method
05 Drilling Tool Requirements
06 Working Conditions
07 Destination Country / Port
Need help? Just provide:
Depth: ___ m | Diameter: ___ mm | Formation: ___ | Method: Water/Air/Not sure | Destination: ___
Frequently Asked Questions
What is the maximum drilling depth?
The CH-JG360 supports 90–300 m, though this depends on geology, diameter, and configuration.
What hole diameter can it drill?
It covers a 90–400 mm range. The final diameter is determined by project requirements.
Can it use both water and air drilling?
Yes. It can be configured for water-assisted or air-assisted drilling as needed.
What drill pipe does it use?
It uses a 76 mm diameter, 2 m length pipe. Please confirm the final configuration.
Is it suitable for hard rock?
For suitable hard-rock conditions, air drilling with DTH hammer and bits is recommended. Provide rock info for selection.
Can you supply drilling tools together with the machine?
Yes. We can supply PDC, tricone, DTH hammers, bits, drill pipes, and accessories.
Can the machine configuration be customized?
Absolutely. The engine, travel system, drill pipes, tools, and supporting equipment can all be customized.
