Geological Drill Pipe | High-Strength Alloy Steel Drill Rods
Drill Pipe Overview

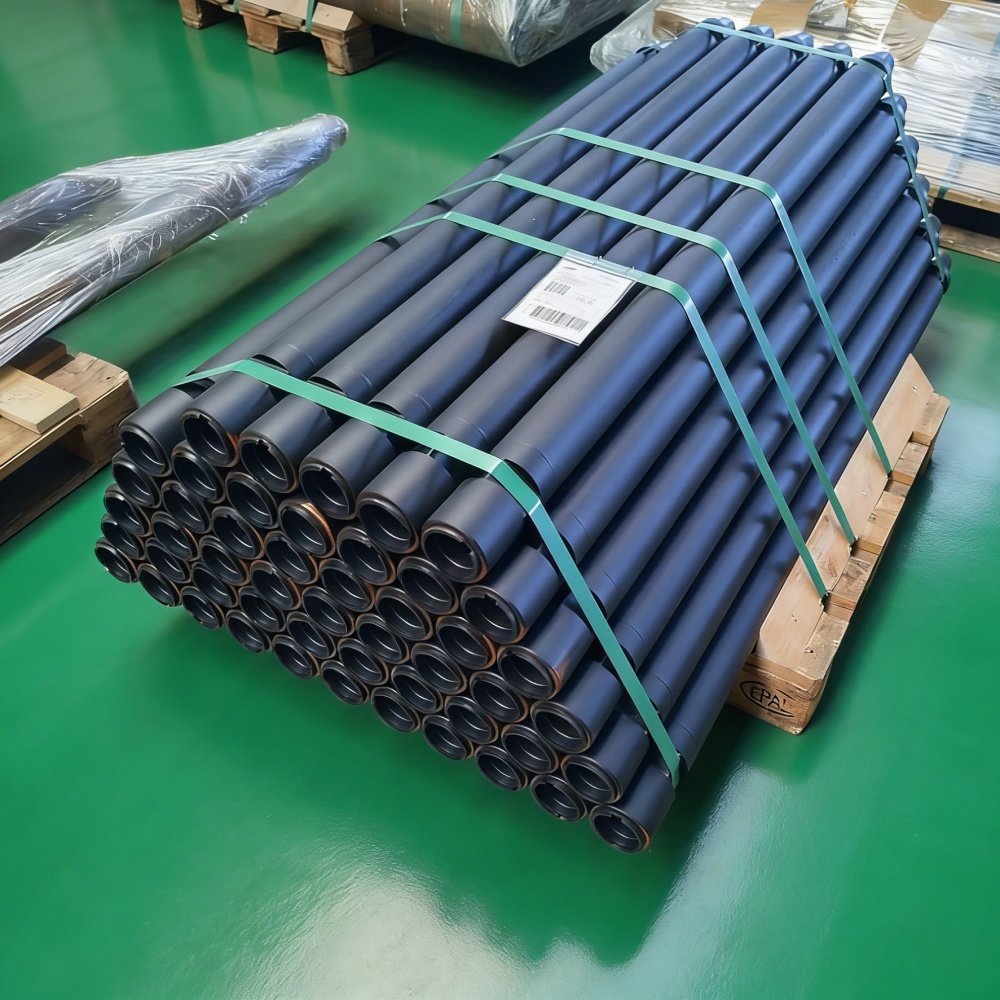

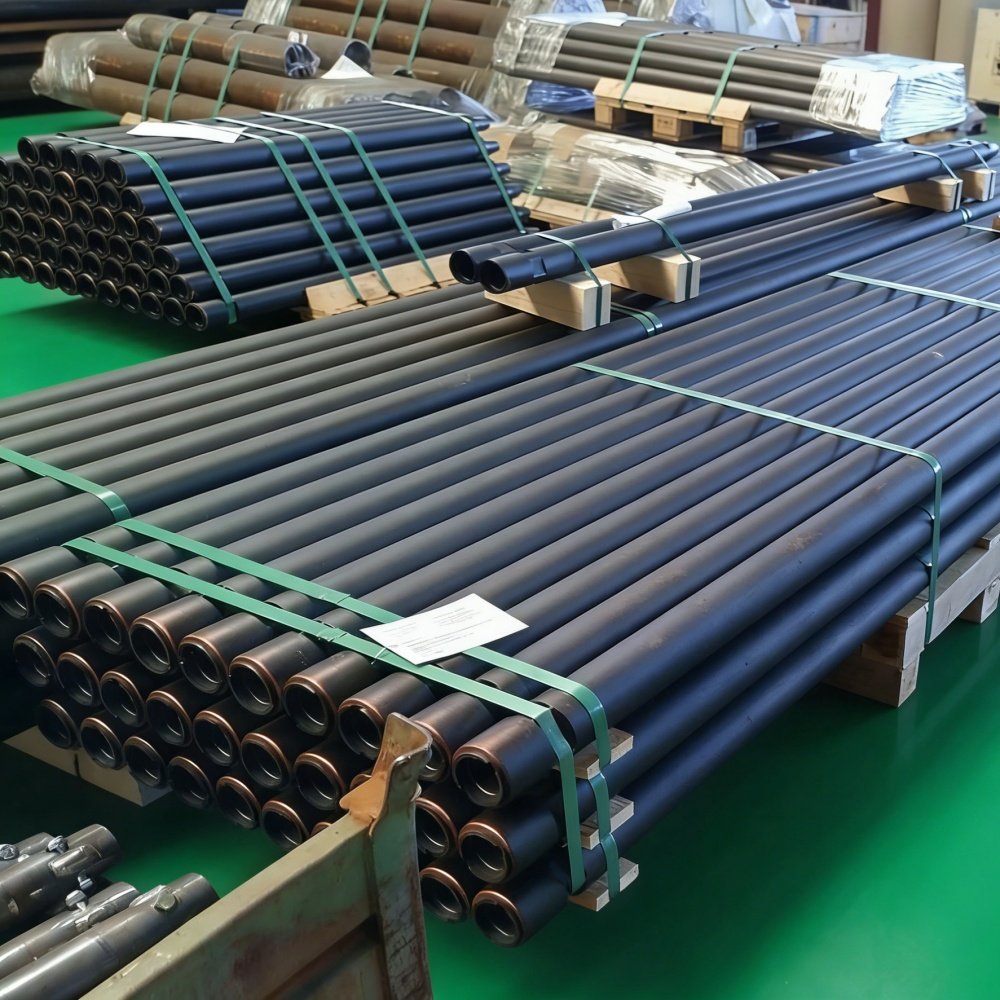

A drill pipe is a steel tube with threaded connections at both ends, used to connect surface drilling equipment to the bottom-hole assembly (BHA) and transmit drilling fluid (mud) to the bit. It serves as the conduit for circulating drilling fluid while simultaneously rotating, lowering, or raising the downhole tools.
Our geological drill pipes are manufactured from high-quality geological alloy steel tubes and alloy structural steel joints. Through vacuum heat treatment and precision friction welding, we achieve superior fatigue strength, shear resistance, and bending strength. Each pipe is CNC-machined to ensure straightness and consistent thread accuracy, guaranteeing reliable performance in deep hole drilling operations.
Whether for water well drilling, mineral exploration, geotechnical investigation, or geothermal projects, our drill pipes deliver long service life and low maintenance costs.
Core Advantages
High-Strength Alloy Steel Construction
The pipe body is made from geological alloy steel tube (DZ50 or R780 grades), while the joints use premium alloy structural steel. Vacuum heat treatment enhances fatigue resistance and shear strength, ensuring durability under cyclic loads.
Precision Friction Welding & CNC Machining
Advanced friction welding technology creates a metallurgical bond between the pipe body and the tool joint, eliminating weak points. CNC machining ensures consistent thread accuracy and perfect straightness for trouble-free makeup.
High Fatigue Strength & Long Service Life
Optimized heat treatment and material selection significantly increase the pipe’s ability to withstand cyclic bending and torsion, resulting in longer operational life and reduced downtime.
Full Customization Available
We can produce special diameters, lengths, and thread types according to your project specifications. OEM orders are welcomed for unique drilling requirements.
Technical Specifications
Our drill pipes are manufactured in accordance with MT/T-521-2006 and GB-T13344-2010 standards. Below are standard sizes and parameters:
| Diameter (mm) | Wall Thickness (mm) | Steel Grade | Torque (N·m) | Reference Depth (m) | Joint Hardness (HRC) | Standard |
|---|---|---|---|---|---|---|
| Φ33.5 | 5.0 | DZ50 | 2000 | 100 | HRC28-32 | MT/T-521-2006 |
| Φ42 | 6.2 | DZ50 | 3000 | 100 | HRC28-32 | MT/T-521-2006 |
| Φ50 | 6.5 | DZ50 | 5000 | 100 | HRC28-32 | MT/T-521-2006 |
| Φ63.5 | 7.1 | R780 | 8000 | 200 | HRC28-32 | MT/T-521-2006 |
| Φ73 | 7.8 | R780 | 10000 | 200 | HRC28-32 | MT/T-521-2006 |
| Φ89 | 9.5 | R780 | 12000 | 300 | HRC28-32 | MT/T-521-2006 |
| Φ102 | 9.5 | R780 | 12000 | 300 | HRC28-32 | GB-T13344-2010 |
| Φ114 | 9.5 | R780 | 15000 | 300 | HRC28-32 | GB-T13344-2010 |
| Φ127 | 9.5 | R780 | 20000 | 300 | HRC28-32 | GB-T13344-2010 |
*Custom diameters, lengths, and thread connections are available upon request. Please contact our engineering team for tailored solutions.
Applications
Customization & Manufacturing Excellence
We understand that every drilling project has unique requirements. Chenghui offers fully customizable drill pipes to meet your specific needs:
- ✓ Custom diameters from 33.5mm to 200mm
- ✓ Special lengths (standard: 1.5m, 3m, 4.5m, 6m)
- ✓ Tailored thread types (REG, NC, Z-50, custom)
- ✓ Enhanced wear-resistant coating options
- ✓ OEM branding and marking
- ✓ Large-batch production for distributors
All pipes undergo rigorous quality inspection including straightness check, thread gauge test, and mechanical property validation.
Our Manufacturing Excellence
From precision heat treatment to final threading — every drill pipe is crafted in our ISO 9001 certified facility.
