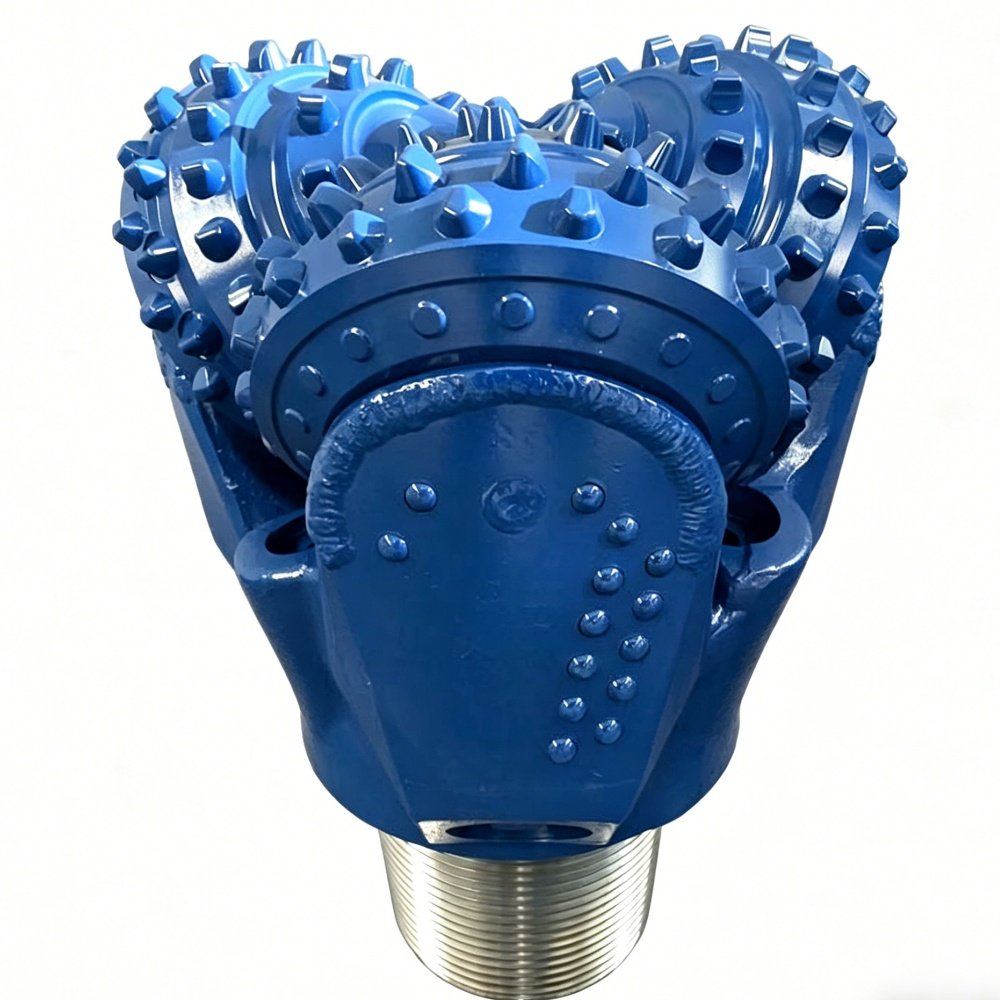

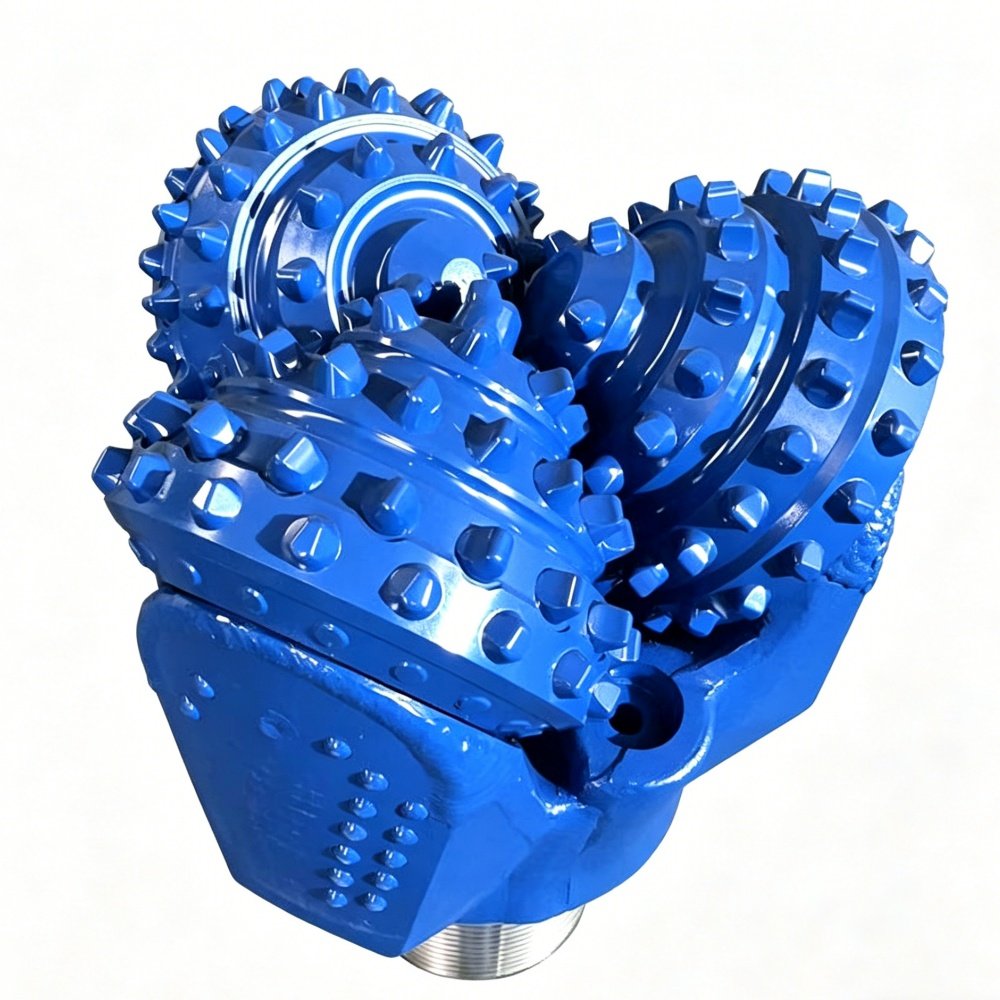

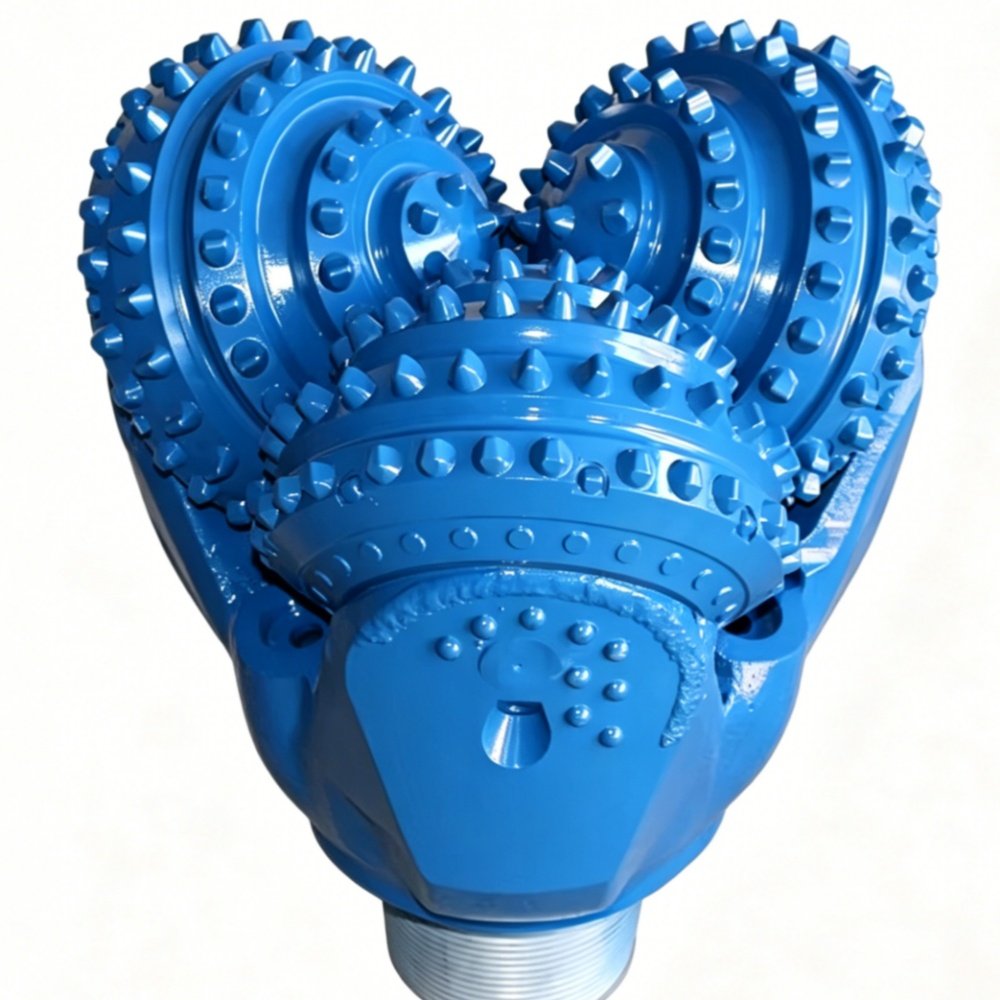

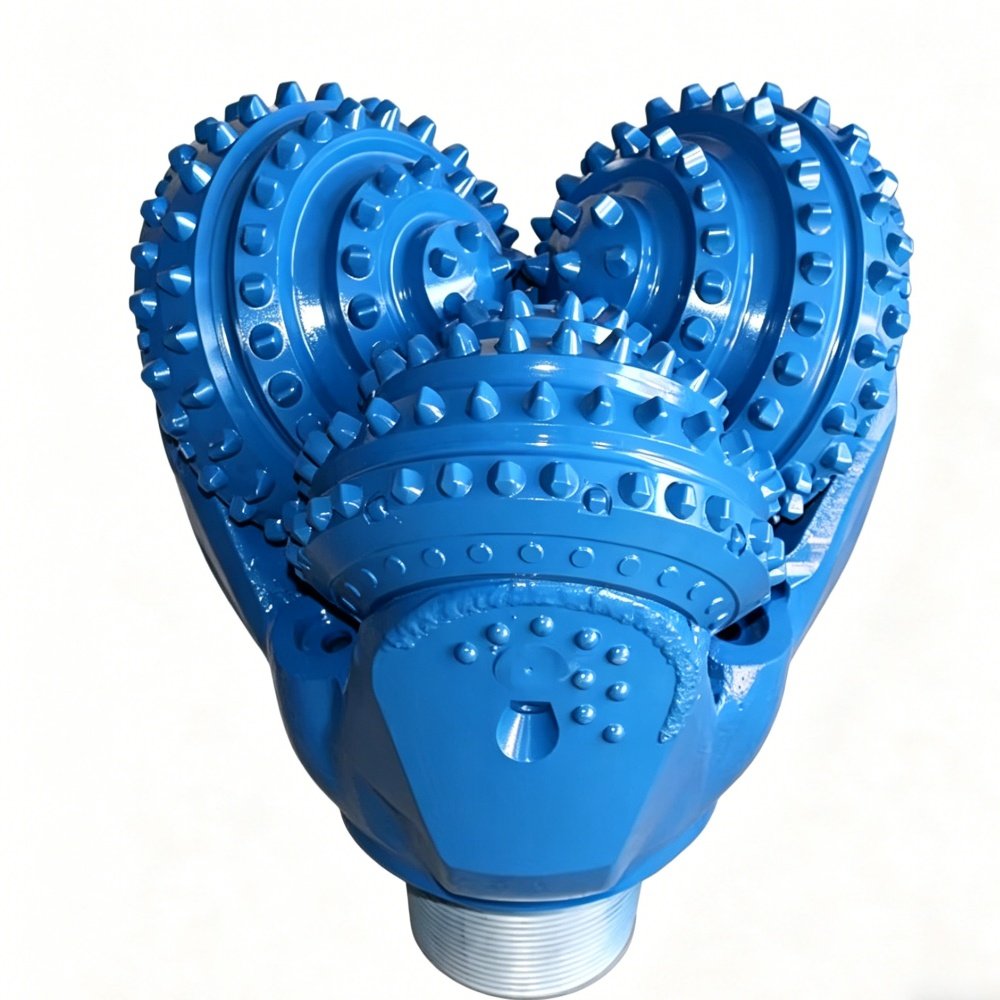

9 1/2″ (241.3mm) IADC 537 Tricone Drill Bit High Performance for Medium Formations
🔷 Product Overview
The 9 1/2″ (241.3mm) IADC 537 tricone drill bit is designed for efficient drilling in medium to medium-hard formations. With high-quality tungsten carbide inserts and a durable sealed bearing system, this bit delivers stable performance, long service life, and excellent drilling efficiency across water well, mining, and oil drilling applications. Engineered to handle interbedded abrasive layers while maintaining high ROP and cost-effectiveness.
TCI Teeth
Tungsten carbide inserts for superior wear resistance in abrasive formations.
Sealed Bearing
Rubber sealed bearings reduce friction and extend bit life.
Gauge Protection
Maintains hole diameter and improves drilling accuracy.
Mud Circulation
Optimized hydraulics for efficient cuttings removal.
📊 Technical Specifications
| Parameter | Details |
|---|---|
| Bit Size | 9 1/2″ (241.3 mm) |
| IADC Code | 537 |
| Bit Type | TCI Tricone Drill Bit |
| Tooth Type | Tungsten Carbide Inserts |
| Bearing Type | Rubber Sealed Bearing |
| Circulation Type | Mud Circulation |
| Thread Connection | 6 5/8 API REG |
| Gauge Protection | Available |
| Shirttail Protection | Available |
⚙️ Operating Parameters
| Parameter | Range |
|---|---|
| Rotary Speed (RPM) | 50 – 120 |
| Weight on Bit (WOB) | 0.45 – 1.0 kN/mm |
👉 Optimized parameters ensure stable drilling and extended bit life. Start with lower WOB and gradually increase for best results.
📋 IADC Formation Hardness Classification
| IADC Tricone Code | IADC Diamond Code | Formation Description | Rock Type | Compressive Strength (MPa) | ROP (m/h) |
|---|---|---|---|---|---|
| 111/124 | M/S112 ~ M/S223 | Very Soft: Low compressive strength, sticky formations | Clay | <25 | >20 |
| 116/137 | M/S222 ~ M/S323 | Soft: Low compressive strength and drillability | Claystone | 25~50 | 10~20 |
| 417/527 | M/S323 ~ M/S433 | Medium Soft: Soft to medium structure, low strength | Claystone | 50~75 | 5~15 |
| 517/537 | M322 ~ M443 | Medium: High compressive strength, moderate abrasion | Mudstone / Limestone | 75~100 | 2~6 |
| 537/617 | M422 ~ M444 | Medium Hard: Dense formations with high strength | Obsidian / Hard Limestone | 100~200 | 1.5~3 |
✅ IADC 537 is specifically optimized for medium formations (75-100 MPa compressive strength), delivering balanced ROP and bit life in mudstone, limestone, and sandstone.
📋 IADC Code Selection Guide – WOB & RPM Parameters
| IADC Code | WOB (kN/mm) | RPM (r/min) | Application / Formation |
|---|---|---|---|
| 111/114/115 | 0.3-0.75 | 200-80 | Very soft: clay, mudstone, chalk |
| 116/117 | 0.35-0.8 | 150-80 | Very soft: clay, mudstone, chalk |
| 121 | 0.3-0.85 | 200-80 | Soft: mudstone, gypsum, salt, soft limestone |
| 124/125 | 0.35-0.9 | 180-60 | Soft to medium: medium sand, soft clay |
| 131 | 0.3-0.95 | 180-80 | Soft to medium: medium sand, soft limestone |
| 136/137 | 0.35-1.0 | 120-60 | Medium soft sandstone, interbedded layers |
| 211/241 | 0.3-0.95 | 180-80 | Medium: sand, soft clay, medium limestone |
| 216/217 | 0.4-1.0 | 100-60 | Medium hard: hard shale, limestone, sandstone, dolomite |
| 246/247 | 0.4-1.0 | 80-50 | Medium hard: hard shale, limestone, dolomite |
| 321 | 0.4-1.0 | 150-70 | Medium hard: hard shale, limestone, marble |
| 324 | 0.4-1.0 | 120-50 | Medium hard: hard shale, limestone, anhydrite |
| 437/447/435 | 0.35-0.9 | 240-70 | Very soft: clay, mudstone, gypsum, salt |
| 517/527/515 | 0.35-1.0 | 220-60 | Soft: mudstone, gypsum, salt, soft limestone |
| 537/547/535 | 0.45-1.0 | 220-50 | Soft to medium: medium sand, soft clay, medium limestone, medium sandstone |
| 617/615 | 0.45-1.1 | 200-50 | Medium hard: hard shale, limestone, sandstone |
| 637/635 | 0.5-1.1 | 180-40 | Hard: limestone, sandstone, dolomite, marble |
🌍 Suitable Formations for IADC 537
This IADC 537 tricone bit is ideal for medium to medium-hard formations with moderate abrasiveness:
🚀 Key Features & Advantages
High-Quality Tungsten Carbide Inserts
Excellent wear resistance, improved durability in abrasive formations.
Sealed Bearing Structure
Reduced friction and wear, extended service life even in demanding conditions.
Gauge Protection Design
Maintains hole diameter, improves drilling accuracy and hole quality.
Shirttail Protection
Prevents erosion, enhances bit stability and longevity.
Optimized Cutting Structure
Balanced load distribution for smooth and efficient drilling.

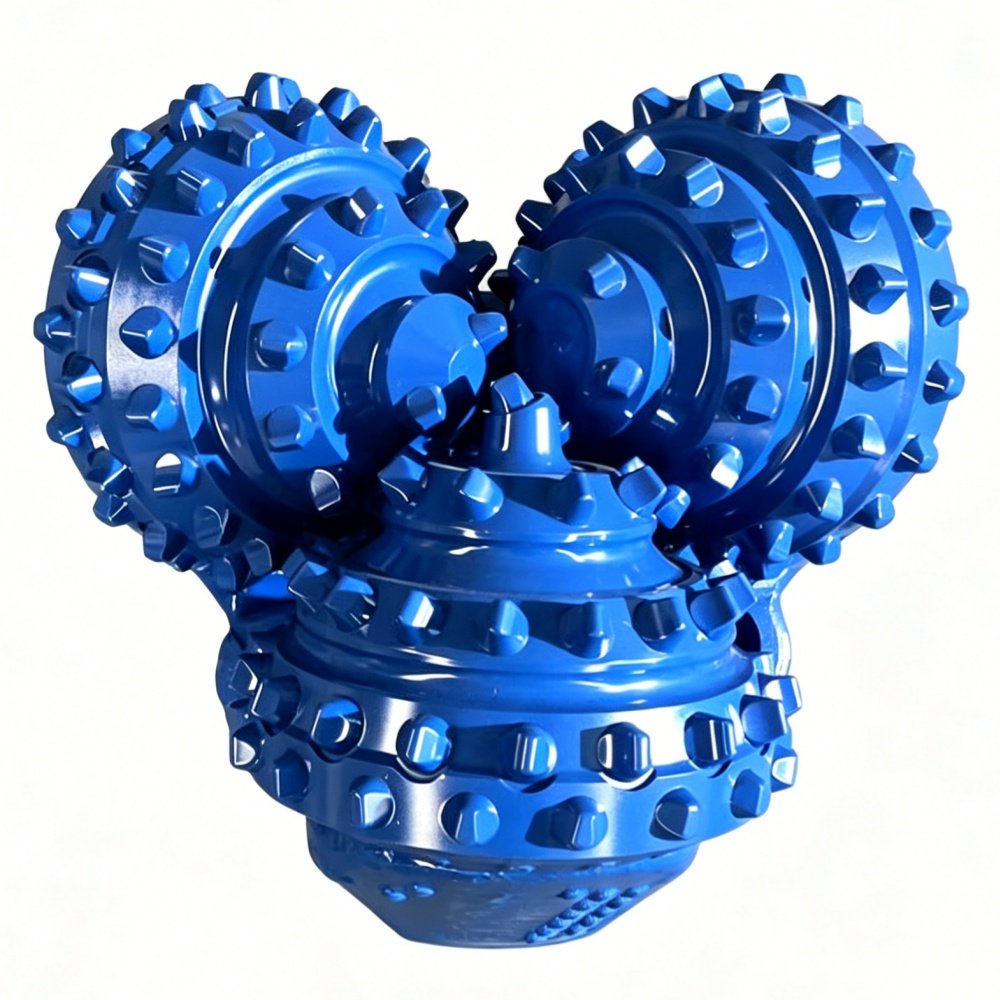

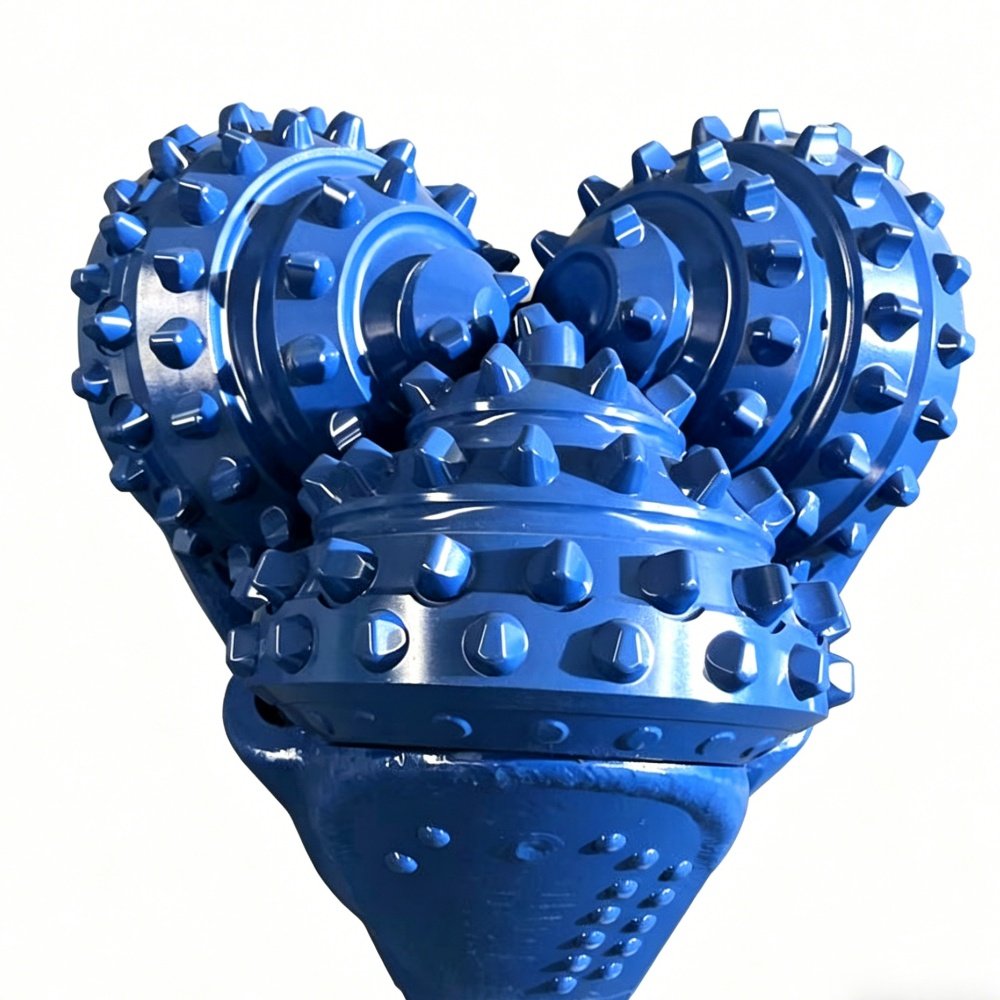

🔩 Product Structure Overview
This tricone drill bit consists of:
- Three rotating cones with precision-machined journals
- Tungsten carbide insert teeth arranged for optimal cutting action
- Rubber sealed bearing system with floating bushings
- Optimized hydraulic nozzles for maximum bottom-hole cleaning
👉 Designed for high stability and consistent performance in medium formations.
🛠️ Application Areas
Suitable for both standard and complex drilling environments. The IADC 537 delivers reliable performance in water well projects, shallow oil wells, and mineral exploration.
⚠️ Usage Recommendations
To achieve the best performance:
- Select the correct bit based on formation lithology (refer to IADC classification tables)
- Ensure proper nozzle configuration for your circulation medium
- Apply recommended RPM (50-120) and WOB (0.45-1.0 kN/mm)
- Start drilling with low pressure and increase gradually
- Monitor torque and rate of penetration for optimal weight adjustment
👉 Proper operation significantly extends bit life and reduces cost per meter.
🏭 Why Choose Chenghui Drilling Tools?
Full Range IADC Bits
From IADC 111 to 837 – we have the right bit for every formation.
Strict Quality Control
ISO 9001 certified. 100% inspection before shipping.
OEM & Customization
Custom threads, inserts, and bearing types available.
Fast Delivery Worldwide
Stock items ship within 5-7 days. Secure export packaging.
👉 Our goal: Help you drill faster, reduce cost per meter, ensure reliable performance.
🏭 Our Manufacturing Excellence
From precision machining to final assembly — every tricone bit is crafted in our ISO 9001 certified facility.
🛠️ Explore Our Full Range of Drilling Tools
From surface to downhole, we offer a complete lineup of high-performance drill bits and accessories engineered for every formation and application. Click any product to learn more.
PDC Non-Coring Drill Bit
Fast penetration in soft to medium formations without core recovery.
PDC Exploration Core Drill Bit
High core recovery and durability in exploration drilling.
Hot-Pressed Diamond Drill Bit
Ideal for very hard and abrasive rock formations.
Electroplated Diamond Drill Bit
Excellent for non-ferrous materials and precision drilling.

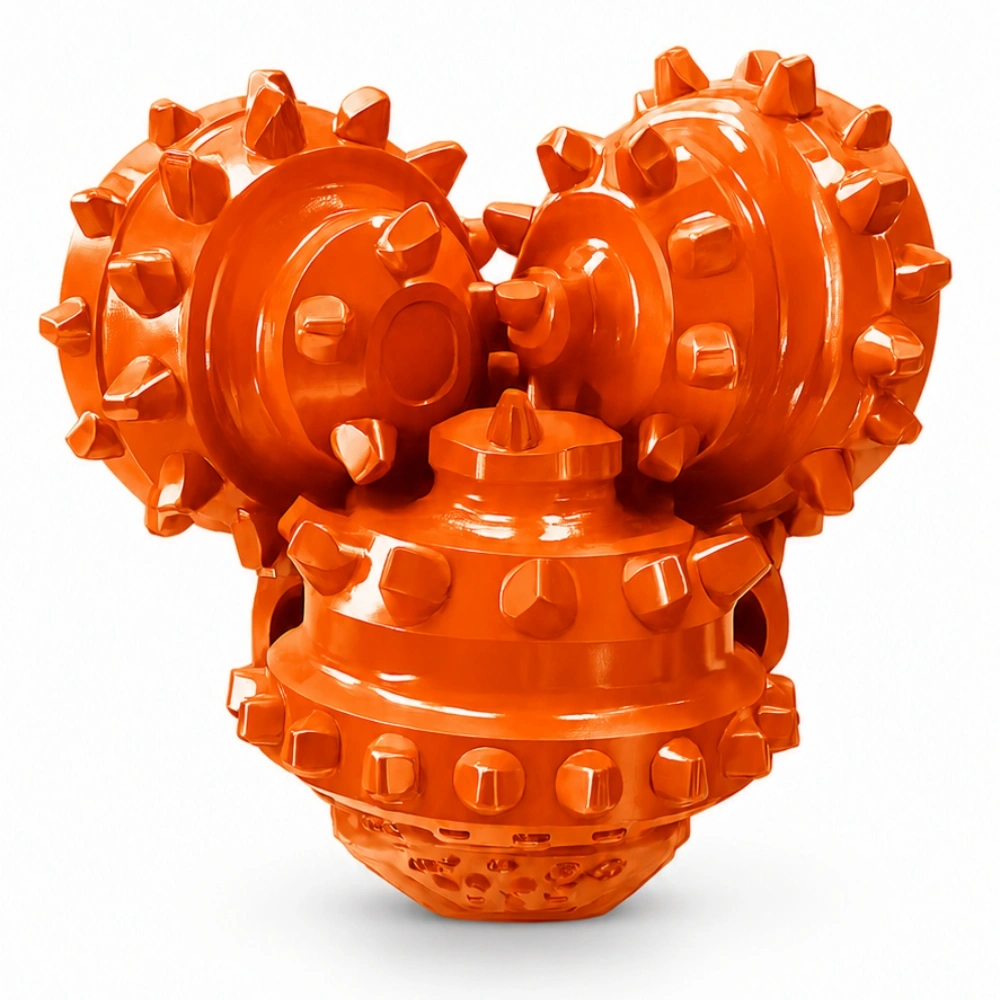

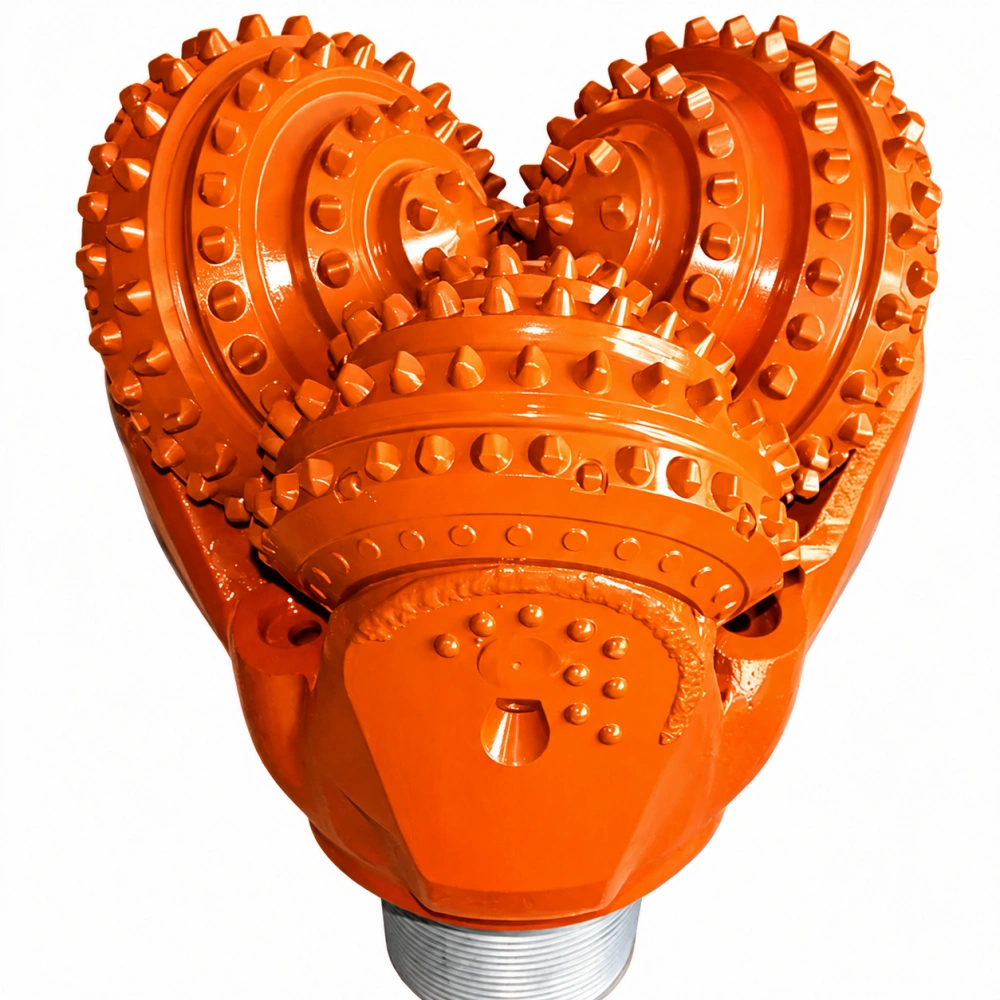

TCI Tricone Bits
IADC 517, 537, 637, 737 series for various formations.
Alloy Scraper Drill Bit
Effective in soft and sticky formations.
Pick Cutter Bit
Heavy-duty cutting for mining and trenching.
DTH Hammer
High-frequency impact for deep hole drilling.
Custom Drill Bit
Tailor-made solutions for your specific project.
Drilling Rigs and Accessories
Complete drilling systems and support equipment.
Contact us to learn more about any product — we provide fast quotes and technical support.
📞 Get a Quote Now
Contact us today to get the best price and technical support for your drilling project.
✅ Fast response within 24 hours | ✅ Technical specs | ✅ OEM support
📬 Let’s talk about your drilling project
Whether you need a standard IADC 537 bit or a fully customized tricone solution, our engineering team is ready to support you with fast quotes and technical advice.
- ⚡ Response within 24h — guaranteed
- 🔧 OEM / custom diameters, threads, bearing types, insert grades
- 📦 Global shipping & export documentation
- 📄 Free technical datasheet & performance report
Speak directly with Nancy
📱 WhatsApp direct: +86 189 4499 5320
📧 Email address: Nancy@drillmfg.com
🕒 Business hours: Monday–Friday, 8:00–18:00 (GMT+8)
❓ Frequently Asked Questions
Medium to medium-hard formations with compressive strength 75-100 MPa – medium limestone, sandstone, mudstone, and interbedded abrasive layers.
IADC 537 features tungsten carbide inserts (TCI) for more abrasive formations, while 517 is also TCI but optimized for slightly softer ranges. 537 handles higher compressive strength.
Yes, the 6 5/8 API REG thread is standard for many water well and mining rigs worldwide.
Service life varies by formation, but with proper parameters, IADC 537 bits typically drill 80-200+ meters in medium formations.
Yes, we can customize nozzle sizes based on your mud pump capacity and formation requirements.
No, as noted in the selection guide, maximum WOB and RPM should not be used together. Follow recommended ranges and adjust based on real-time drilling.
