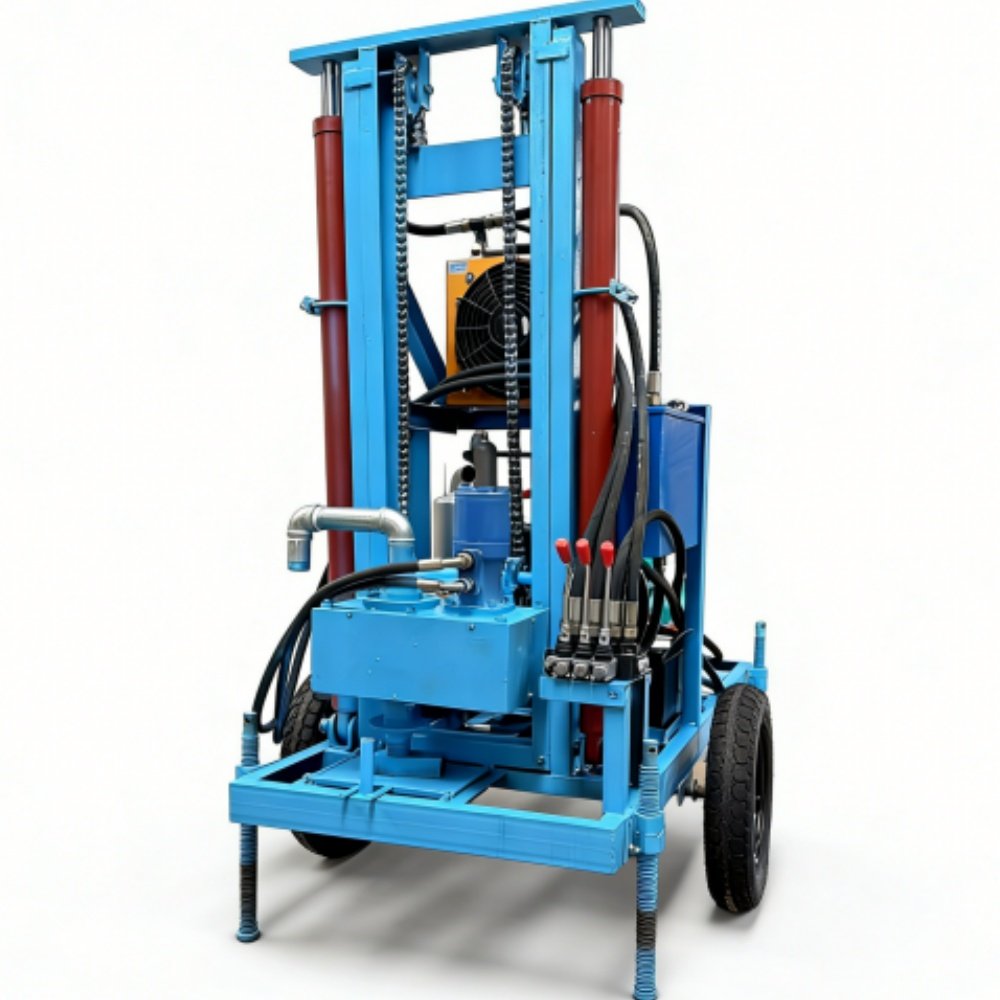

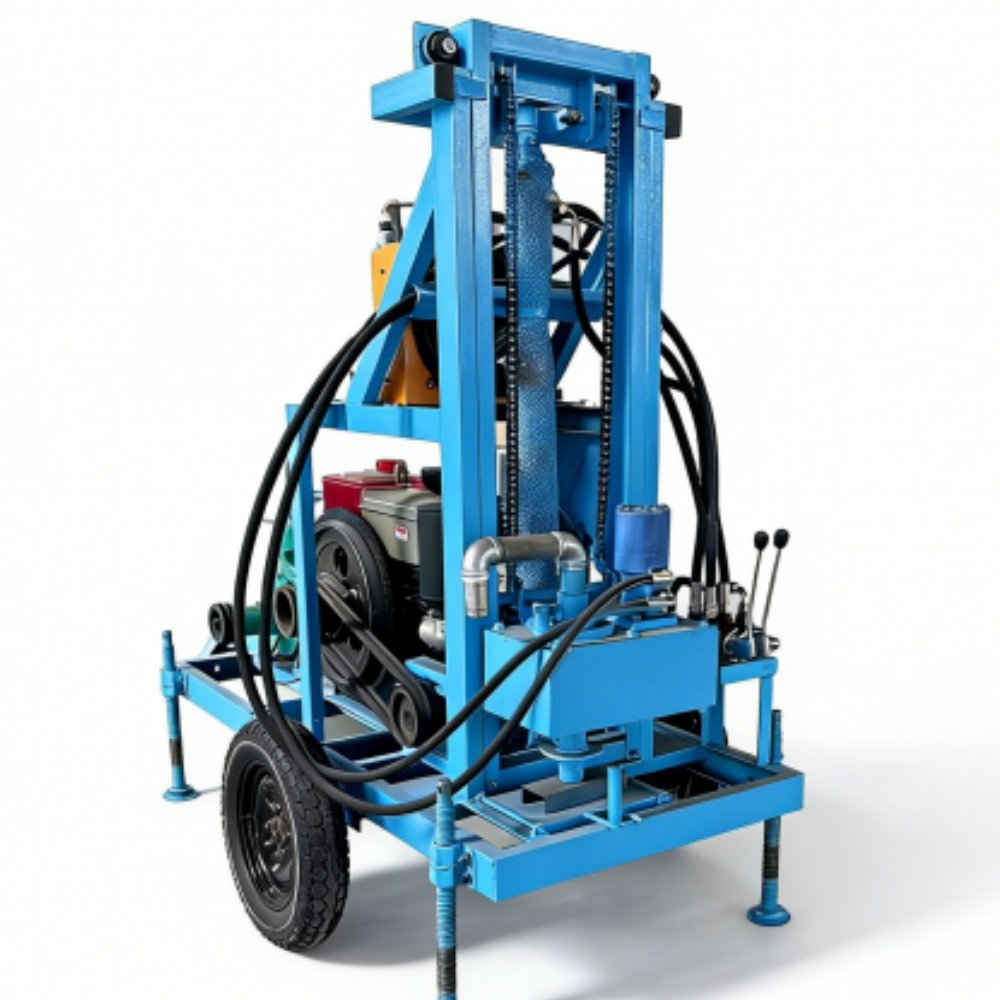

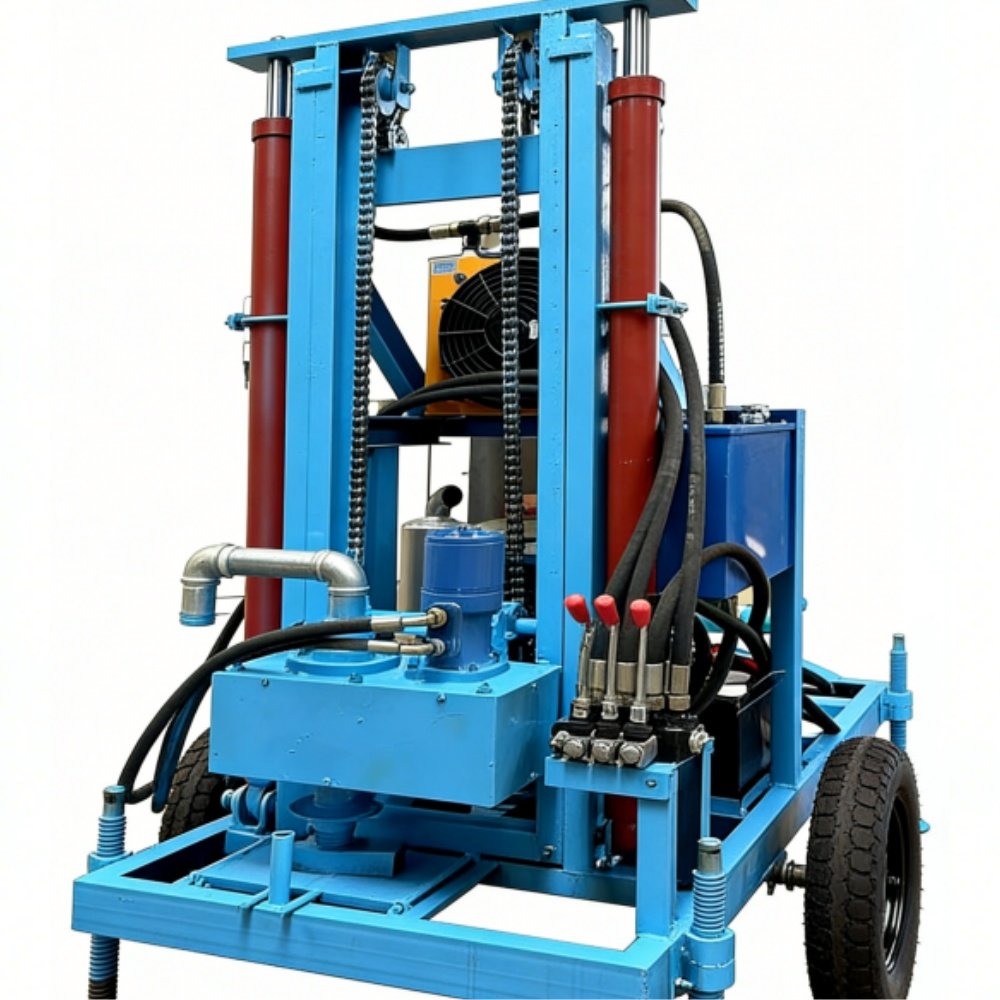

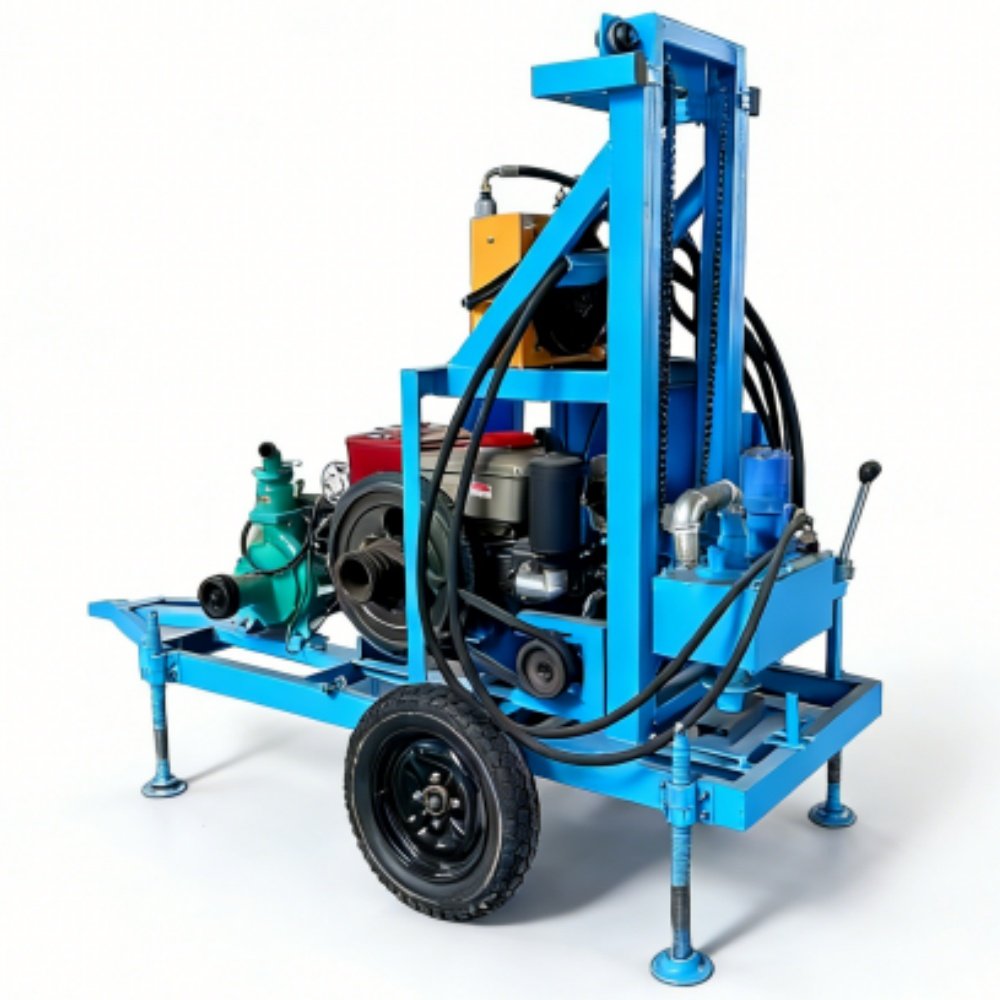

Diesel Powered Hydraulic Water Well Drilling Rig | Specialized for Small to Medium Drilling (150-200m Depth)
This diesel powered hydraulic water well drilling rig is specifically designed and developed for water well drilling and small to medium drilling projects. Equipped with a 30Hp high-efficiency diesel engine and dual hydraulic control system, it achieves drilling depths of 150-200 meters and adapts to 50-300mm multiple specification drill bits. With stable and precise operation, efficient and reliable performance, the entire machine is ISO9001 quality system certified, comes with 1 year official warranty, and features full wooden crate customized packaging to ensure damage-free logistics transportation. An ideal cost-effective equipment for civil/agricultural water wells and small to medium engineering drilling projects.
Core Advantages

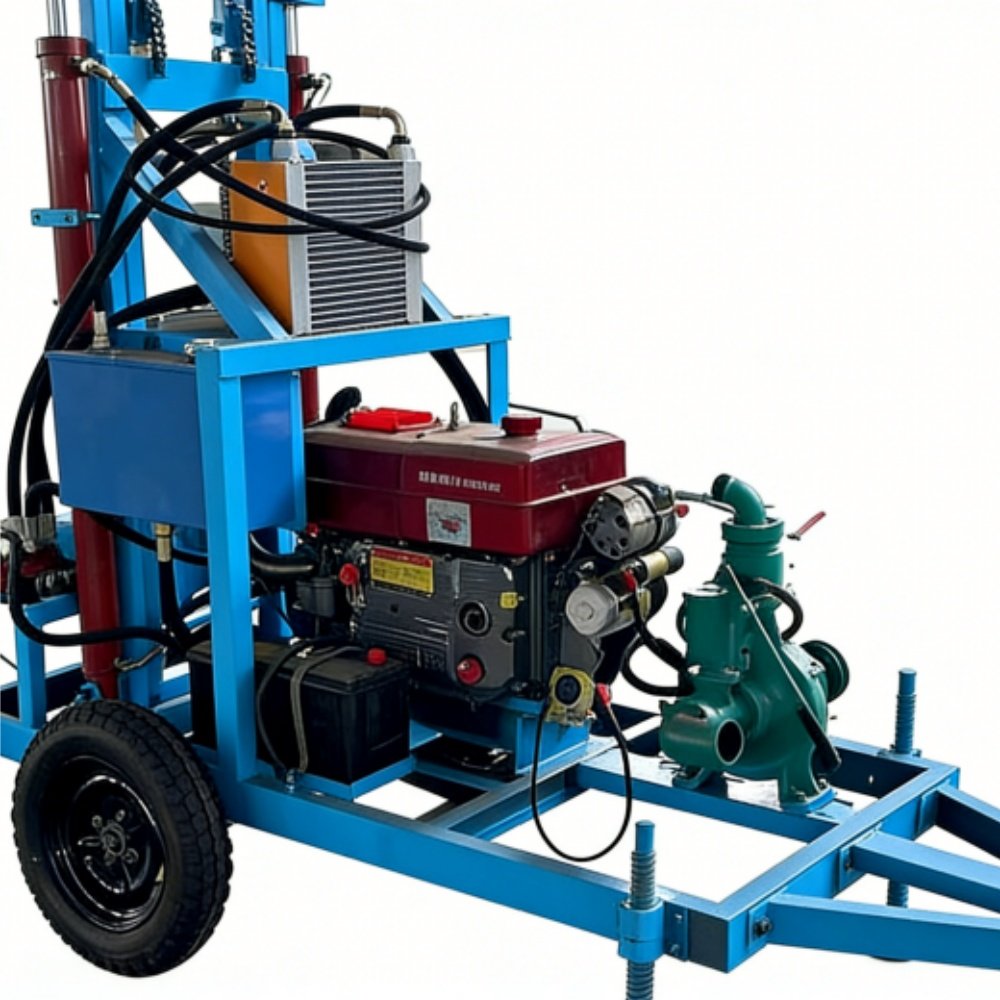

30Hp Diesel Engine · Efficient & Stable Power
Powered by a 30Hp diesel engine as the core power source, delivering strong power output with economical fuel consumption. Suitable for continuous drilling operations in outdoor environments without external power sources, adapting to various field small to medium drilling conditions with high efficiency and reliability.
150-200m Drilling Depth · Perfect for Small/Medium Projects
Specifically optimized for small to medium drilling requirements, with drilling depth covering 150-200 meters. Perfectly adapts to civil water wells, agricultural irrigation wells, small engineering dewatering wells, and other drilling projects. No need for large equipment, reducing construction costs.

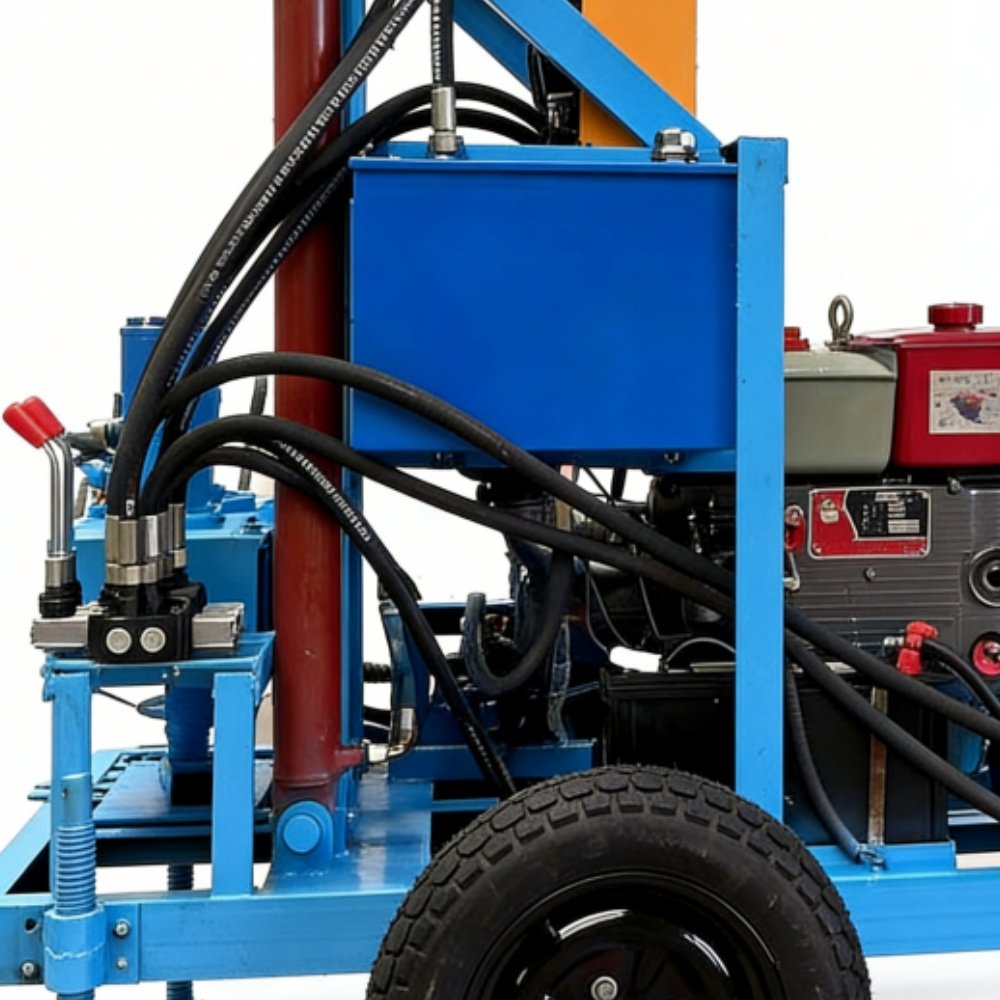

Dual Hydraulic Control · Precise & Easy Operation
Utilizes dual hydraulic control system, providing more stable operation and more precise drilling stroke control compared to single hydraulic systems. Effectively improves drilling verticality and operation efficiency. Hydraulic operation is light and easy to understand, allowing beginners to quickly master operation, reducing manual operation barriers.
Wide Bit Compatibility · Maximum On-site Flexibility
Can be paired with 50mm-300mm full specification drill bits, allowing flexible changes according to drilling requirements. Meets different diameter water wells and various geological condition drilling requirements. Excellent on-site adaptability, with one equipment covering multiple operation needs.
ISO9001 Certified · Military-Grade Quality Assurance
Entire machine manufacturing process follows ISO9001 quality system standards, with strict testing from component material selection to finished product assembly. Features robust structure, low failure rate, and stable operation even in harsh outdoor conditions, with longer service life.
Full Wooden Crate Packaging · Damage-Free Logistics
Main unit and drill rods feature reinforced full wooden crate independent packaging, precisely customized according to equipment dimensions. Effectively resists bumps and collisions during transportation, ensuring equipment arrives intact from factory to construction site without damage.
1 Year Official Warranty · Worry-Free After-Sales Service
Each unit comes with 1 year official free warranty. Non-artificial damage to core components during warranty period receives free repair/replacement. Professional after-sales team provides 7*24 hour response, offering efficient technical support and parts supply for global customers.
Technical Specifications
| Item | Specification |
|---|---|
| Core Power | 30Hp Diesel Engine |
| Control System | Dual Hydraulic Control System |
| Drilling Depth | 150-200 meters |
| Drill Rod Diameter | 50mm |
| Drill Rod Length | 1.5m |
| Compatible Drill Bits | 50mm-300mm |
| Total Weight | 1300KG |
| Quality Certification | ISO9001 Quality System Certified |
| Official Warranty | 1 Year |
| Operation Adaptation | Water Well Drilling, Small to Medium Drilling Projects |
Packaging Details (Full Wooden Crate Independent Packaging)
Main Unit Packaging
Drill Rod Packaging
Note: Packaging can be optimized according to customer logistics requirements (sea/land/air transport) with reinforcement to meet global transportation standards.
