What Are IADC Codes for Drill Bits? Complete Guide for Accurate Bit Selection
Choosing the wrong drill bit can lead to slow drilling, high costs, and premature failure.
That’s why the drilling industry uses a standardized system called IADC codes—a universal language that helps engineers and buyers quickly identify the right drill bit for any formation.
In this guide, we’ll explain what IADC codes mean, how to read them, and how to use them to improve your drilling performance.
What Is an IADC Code?
The IADC (International Association of Drilling Contractors) code is a standardized classification system used to describe drill bit characteristics.
For tricone bits, it typically consists of three digits (sometimes with an extra letter), each representing key design and application features.
👉 This system allows global buyers and suppliers to communicate clearly and avoid costly mistakes.
Why IADC Codes Matter in Drilling
Understanding IADC codes helps you:
- Select the correct bit for specific formations
- Improve drilling speed (ROP)
- Extend bit life
- Reduce cost per meter
👉 A small code difference can significantly impact performance and cost.
IADC Code Structure (Tricone Bits)
A standard tricone IADC code looks like this: XYZ
First Digit
Bit Type & Formation Range
Second Digit
Formation Hardness Detail
Third Digit
Bearing & Design Features

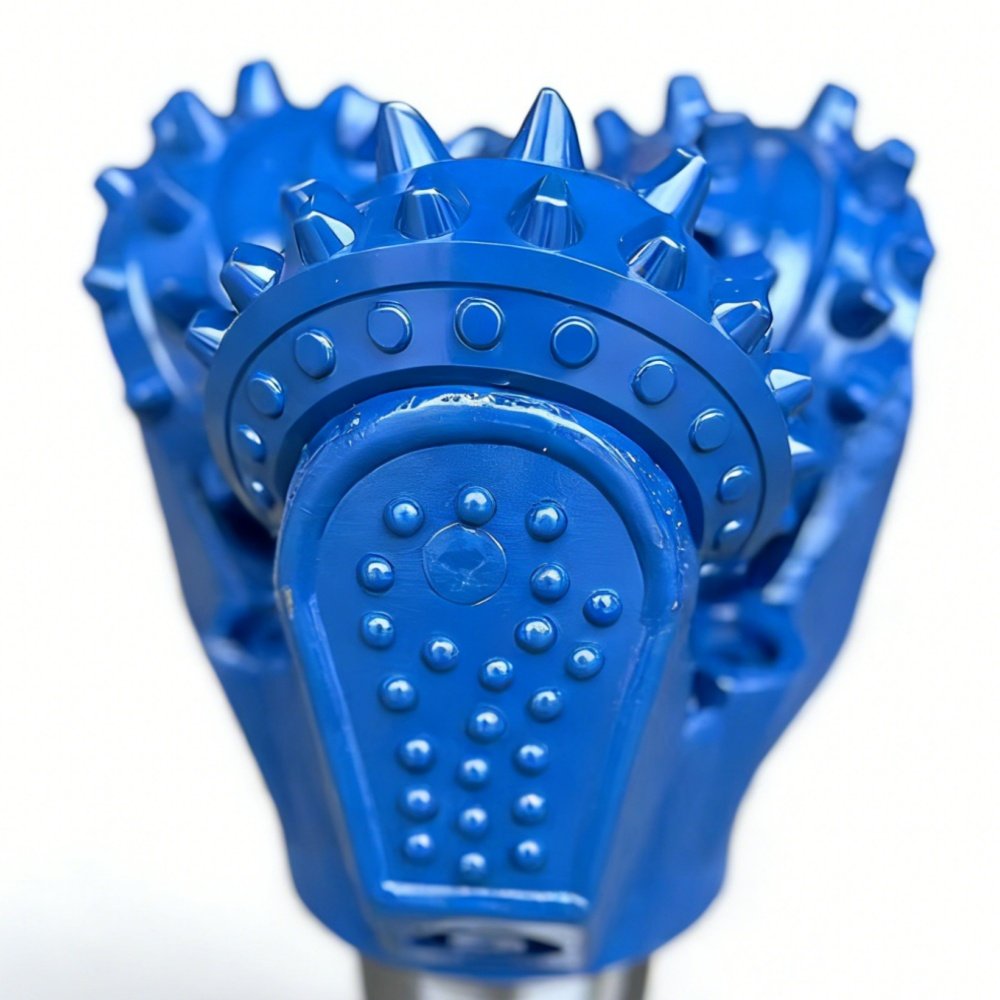

Tricone drill bit – engineered for precision and durability across various IADC formations.
✅ 1. First Digit: Bit Type & Formation Range
| Code | Bit Type | Formation |
|---|---|---|
| 1–3 | Steel Tooth | Soft → Medium |
| 4–8 | TCI (Tungsten Carbide Insert) | Medium → Extremely Hard |
👉 Example: 1 = soft formation steel tooth | 6 = hard formation TCI bit
✅ 2. Second Digit: Formation Hardness Detail
| Code | Formation |
|---|---|
| 1 | Soft |
| 2 | Medium-soft |
| 3 | Medium-hard |
| 4 | Hard |
✅ 3. Third Digit: Bearing & Design Features
| Code | Features |
|---|---|
| 1 | Open bearing |
| 2 | Air-cooled bearing |
| 3 | Open bearing + gauge protection |
| 4 | Sealed bearing |
| 5 | Sealed bearing + gauge protection |
| 6 | Journal bearing |
| 7 | Journal bearing + gauge protection |
✅ 4. Optional Fourth Character (Extra Features)
Sometimes a letter is added: G (extra gauge protection), C (center jet), A (air drilling), X/Y (special cutter shape). Used for more advanced customization.
Example: How to Read an IADC Code
IADC 537
- 5 → TCI bit (medium formation)
- 3 → Medium-hard formation
- 7 → Sealed journal bearing + protection
👉 Conclusion: A high-durability bit for medium-hard to hard formations
IADC Code Chart (Quick Reference)
| IADC Code | Description |
|---|---|
| 117 | Soft formation steel tooth |
| 217 | Medium-soft steel tooth |
| 437 | Soft formation TCI |
| 537 | Medium-hard TCI |
| 637 | Hard formation TCI |
👉 These are the most commonly purchased models in the industry.
What About PDC Bit IADC Codes?
PDC bits use a slightly different system, usually 4 characters. Example: M423
- M → Matrix body
- 4 → Formation hardness
- 2 → Cutter density
- 3 → Cutter size/profile
👉 PDC codes describe body type, cutter size, and bit profile.
How to Use IADC Codes in Real Projects
Step 1: Identify Formation — Soft → 1–2 series | Medium → 3–5 | Hard → 6–8
Step 2: Match Bit Type — Soft → Steel tooth / PDC | Hard → TCI / Tricone
Step 3: Select Bearing Type — Long runs → Sealed bearing | Cost control → Open bearing
Step 4: Optimize Based on Experience — Use past drilling data, adjust for RPM, WOB, and hydraulics
Common Mistakes to Avoid
- ❌ Only looking at price
- ❌ Ignoring formation differences
- ❌ Using one code for all conditions
- ❌ Misreading the third digit
👉 Result: Low efficiency, high cost, frequent bit replacement.
Chenghui Drilling Tools: Your IADC-Based Solution Provider
At Chenghui Drilling Tools Manufacturing, we help customers select the right drill bit based on IADC standards.
- ✅ Full range of IADC-coded tricone bits
- ✅ PDC drill bits with optimized designs
- ✅ Custom solutions based on formation
- ✅ Fast global delivery
Our goal: 👉 Reduce your drilling cost • Improve efficiency • Ensure reliable performance
Conclusion
IADC codes are not just numbers—they are a powerful decision tool. By understanding IADC classification, you can choose the right drill bit, improve drilling efficiency, and reduce operational risks.
👉 Mastering IADC codes means mastering drilling performance.
