Three Wing PDC Drag Bit (For Soft to Hard Formations)
Professional Drilling Solution for Enhanced Productivity
Optimized Performance Across Varied Geological Conditions
Core Advantages
Ultra-Fast Penetration Rate
Optimized for soft to hard formations, delivering high drilling efficiency and significantly reducing operation time.
Excellent Cuttings Removal
Three-wing drag blade structure ensures smooth cuttings evacuation, preventing bit balling and cuttings regrinding.
Durable & Reliable Performance
High-quality PDC diamond cutters provide excellent impact resistance, uniform wear, and extended service life.
Wide Compatibility & Customization
10+ standard sizes available, compatible with mainstream thread types, fully customizable upon request.
Product Overview

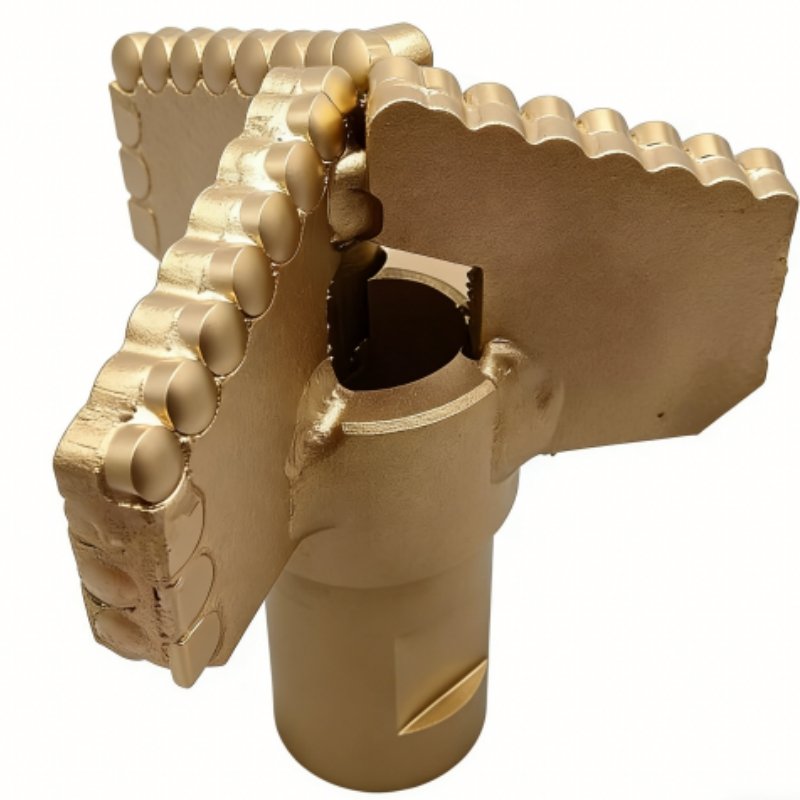

The Three Wing PDC Drag Bit is a high-efficiency rotary drilling bit specifically designed for soft to hard rock formations. By combining a streamlined three-wing blade structure with highly wear-resistant PDC diamond cutters, this bit achieves an ideal balance between penetration speed, drilling stability, and cost-effectiveness.
It performs exceptionally well in complex formations such as red sandstone, mudstone, coal seams, shale, slate, marble, and backfill layers, making it widely used in coal mine safety, infrastructure construction, water well drilling, and geothermal projects.
Design & Performance Features
High-Efficiency Rock Cutting
Three-wing streamlined blade layout with densely arranged PDC cutters enables shear-type rock breaking, significantly outperforming traditional drag bits in soft formations.
Smooth Cuttings Removal
Large junk slots and optimized hydraulic design ensure cuttings are rapidly removed from the borehole, keeping the bottom clean and preventing bit clogging.
Excellent Directional Control
Reinforced bit body and gauge protection provide superior guidance during spudding and drilling, helping maintain verticality and reduce hole deviation risk.
Wide Formation Adaptability
Designed for formations with Protodyakonov hardness coefficient F1-F<8, ideal for coal seams, mudstone, shale, sandstone, limestone, and other soft to hard formations.
Technical Specifications
Recommended Applications
Gas drainage & extraction holes
Slope stabilization & anchor holes
Water wells & hydrogeological drilling
Shallow geothermal drilling
Casing advancement / spudding
Suitable Formations
Red sandstone, mudstone, coal seams, backfill layers, limestone, shale, marble, and similar soft to hard formations.
Drilling Method
Rotary drilling (Mud circulation or water circulation is recommended for effective cuttings removal).
Product Sizes & Thread Options
Standard Bit Sizes (mm)
91
113
133
153
171
200
220
245
275
300
325
Custom sizes available upon request.
Available Thread Types
Customization Service
If your drill rod thread is not listed, simply provide the thread specification or drawing. We offer fully customized connection solutions.
Get Your Customized PDC Drag Bit Quote
Contact our technical team for personalized recommendations, technical specifications, and competitive pricing
Typical Applications
Coal Mining Safety
Gas drainage holes, pressure relief holes, water injection holes, exploration & drainage holes.
Infrastructure Construction
Slope stabilization, tunnel support, foundation anchoring, and grouting reinforcement.
Resource Exploration
Hydrogeological investigation holes, shallow geothermal wells, water supply wells.
Other Engineering Projects
Pilot holes for piling, geological survey drilling, and construction exploration drilling.
Operating Guidelines & Tips
Spudding Recommendation
When drilling in loose or complex surface layers, apply moderate weight on bit with higher RPM to ensure smooth spudding and accurate guidance.
Drilling Parameters
High penetration rates are achievable in soft formations, but proper matching of WOB and RPM is essential to protect both bit and borehole quality.
Flushing & Cooling
Ensure sufficient air or mud flow to effectively cool PDC cutters and evacuate cuttings.
Casing Drilling
When used as a casing bit, select the bit size according to the outer diameter of the casing.
Our Service & Support
Professional Customization
Non-standard sizes and special thread designs supported.
Quality Assurance
Manufactured with premium raw materials under strict quality control processes.
Technical Support
Free consultation for bit selection, drilling parameters, and application guidance.
Global Shipping
Fast and reliable international logistics solutions available.
